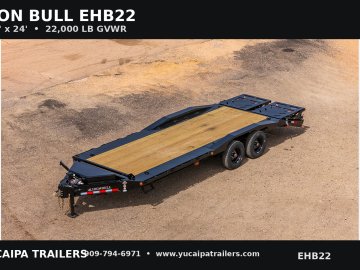

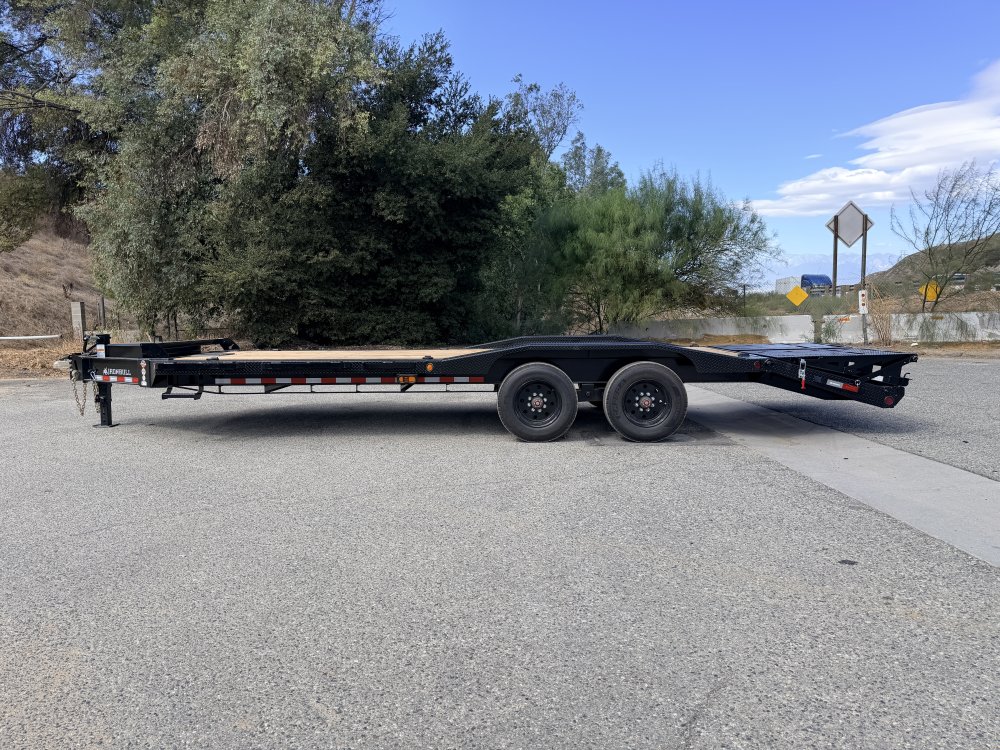

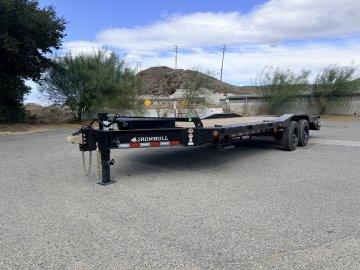

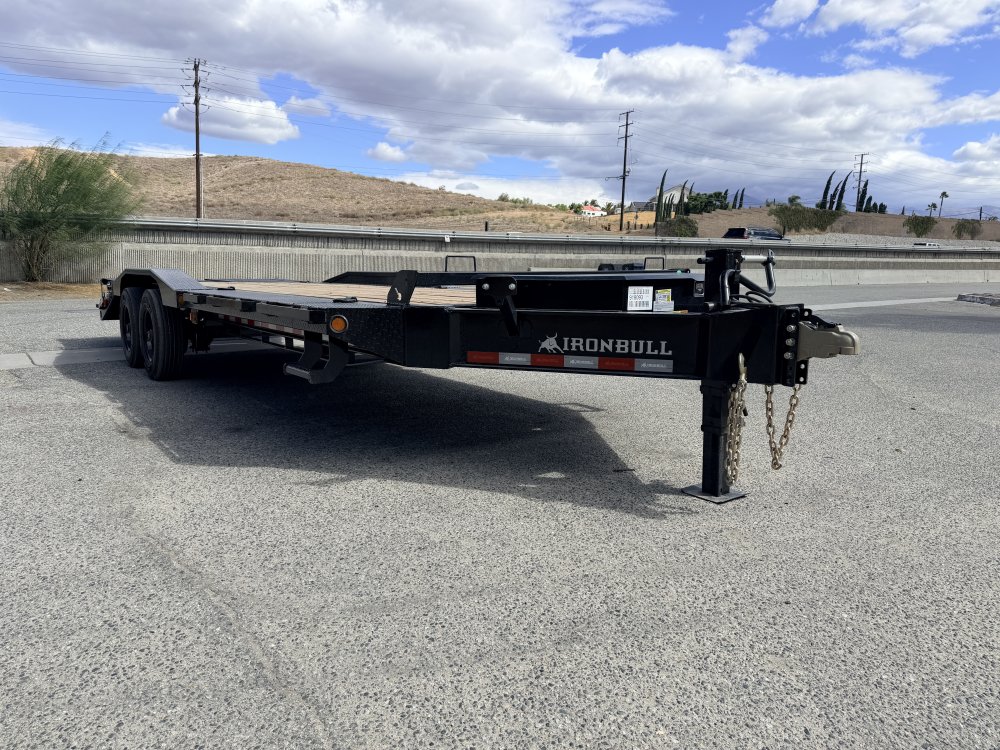

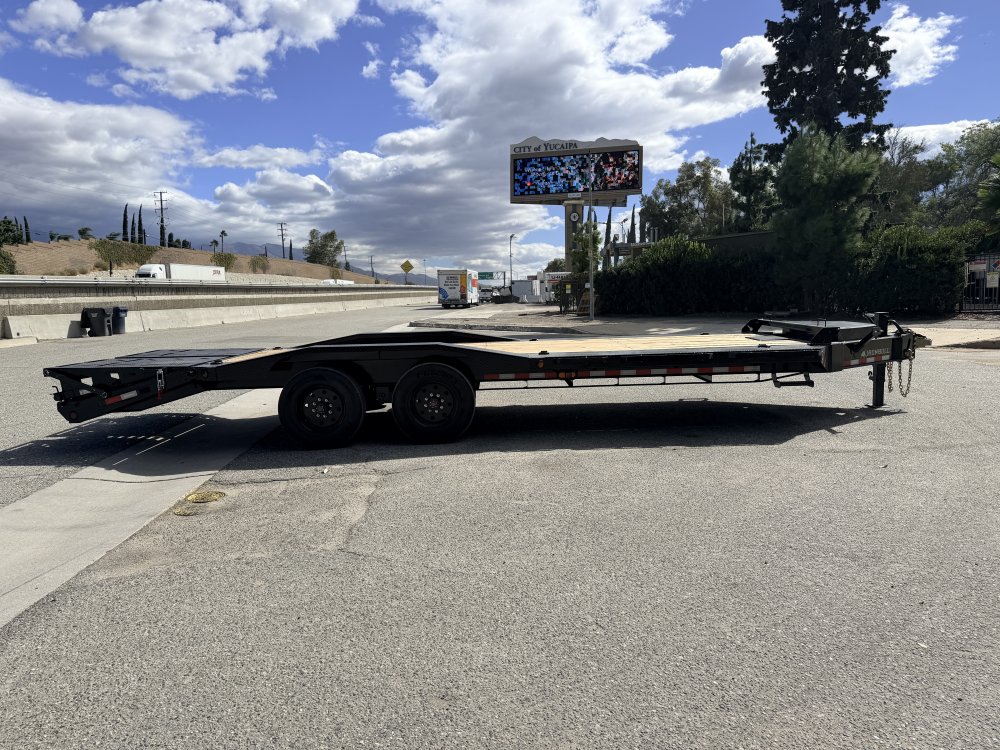

Iron Bull EHB22 102x24 Heavy-Duty Equipment Trailer – 22,000 LB GVWR

The Iron Bull EHB22 102x24 is built for serious equipment hauling where strength, stability, and dependable performance are essential. With a 22,000 lb GVWR, dual 10,000 lb straight single-wheel axles, commercial-grade 17.5” tires, and a massive 10” I-beam frame, this trailer is designed for contractors and equipment operators hauling heavier machinery.

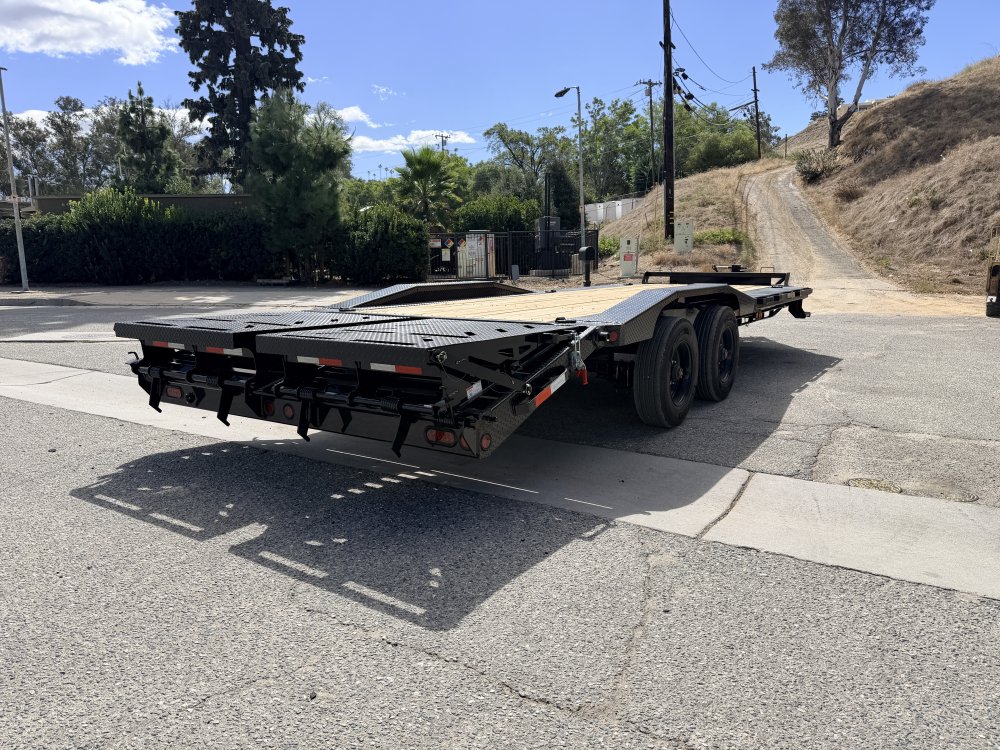

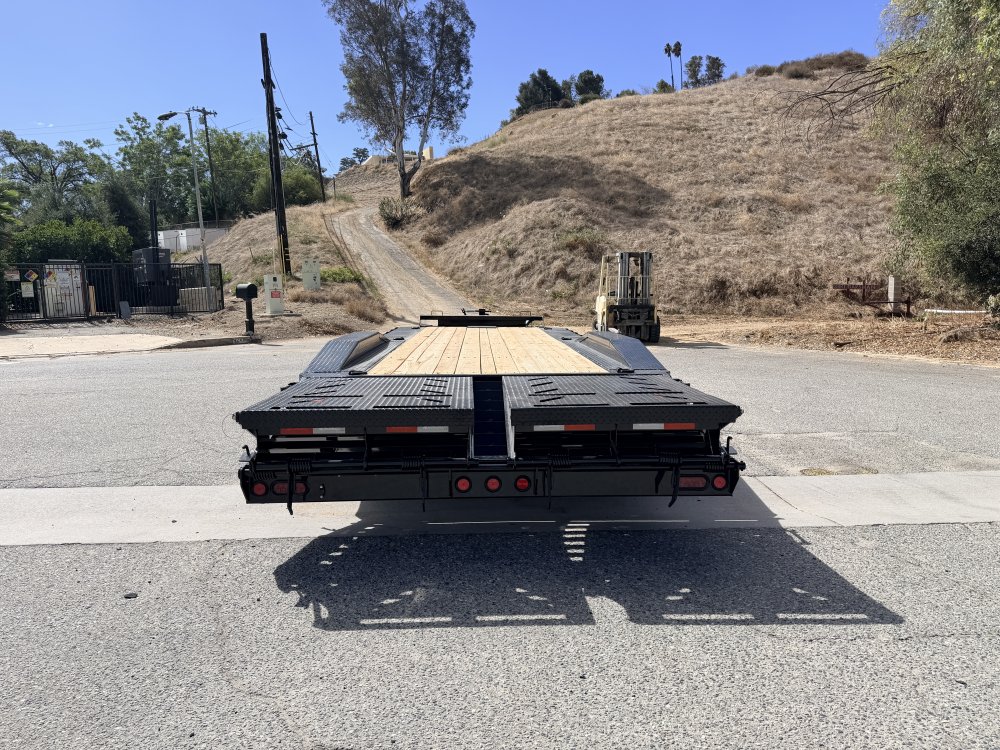

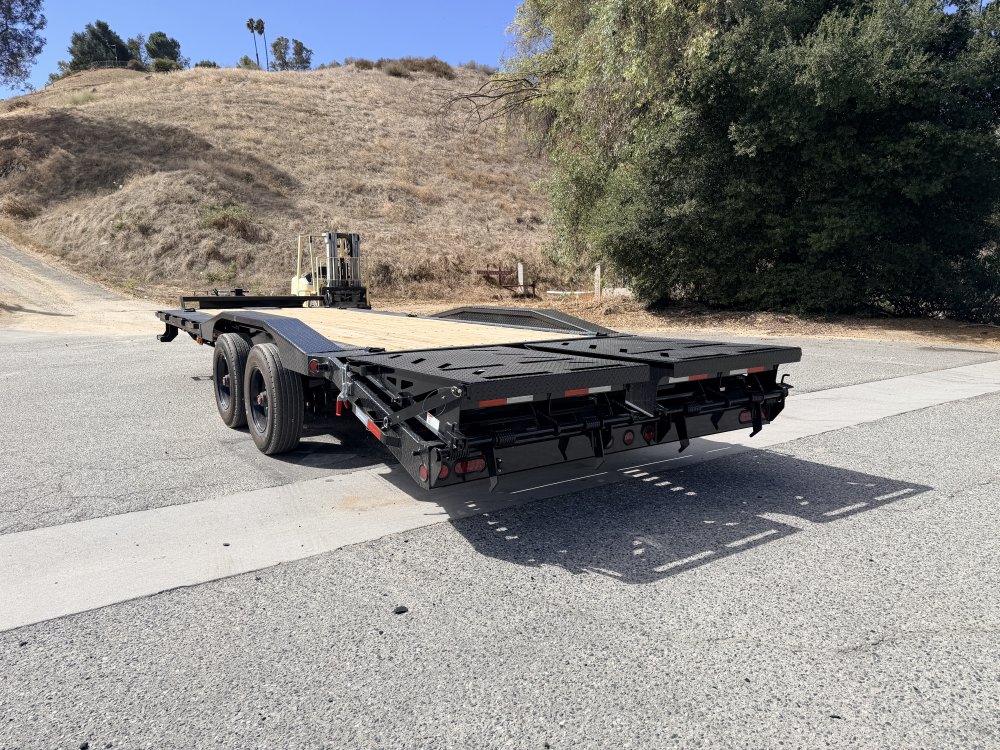

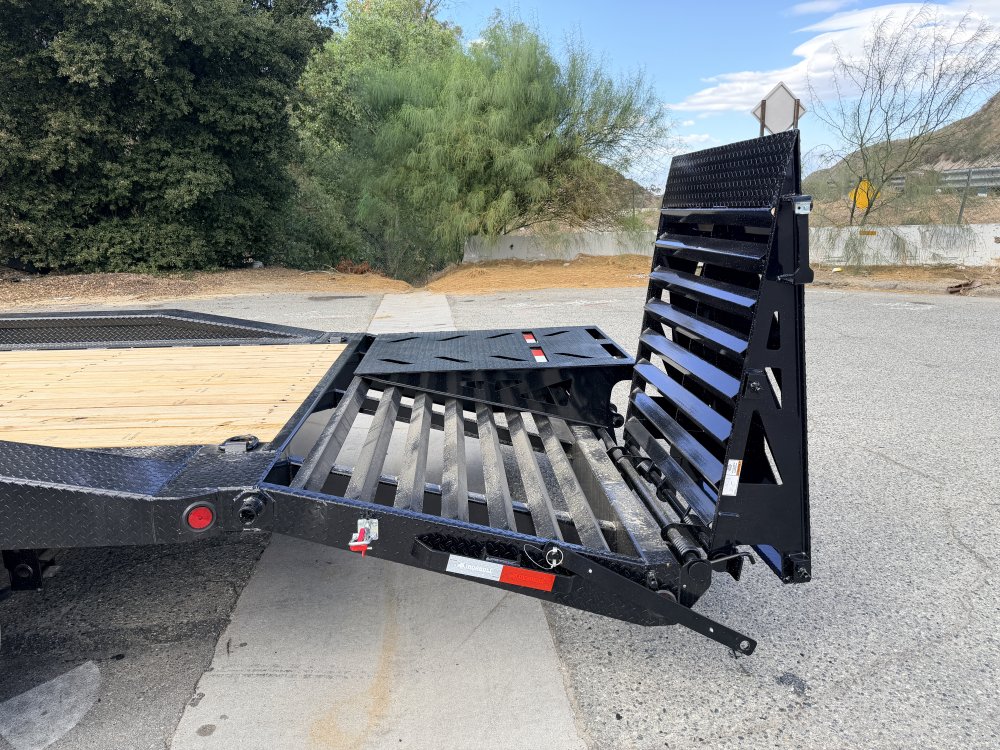

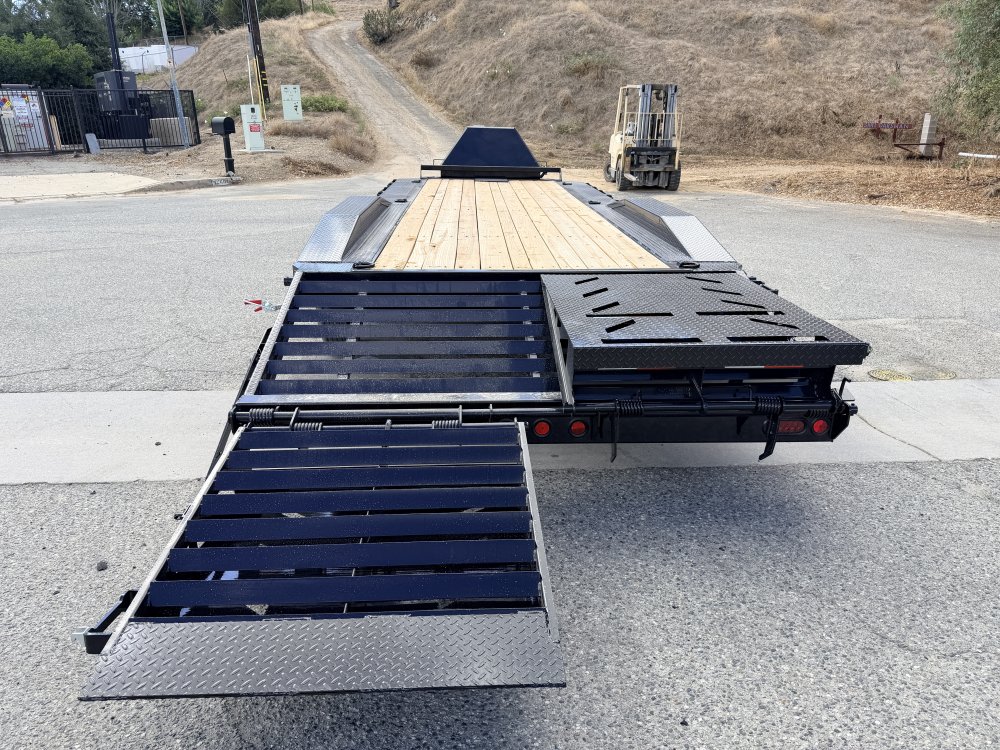

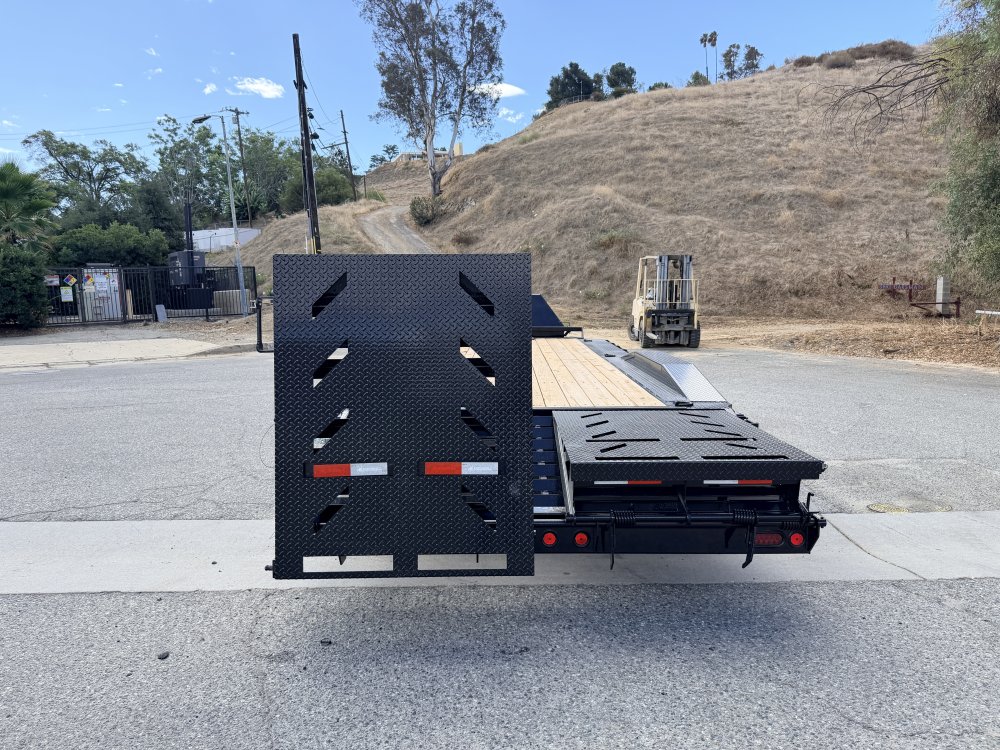

The 102” wide x 24’ deck provides plenty of usable loading space, while the 4’ self-cleaning dovetail with 4’ Rampage ramps creates a smooth transition for loading skid steers, excavators, tractors, compact track loaders, and other equipment.

A heavy-duty 10” x 19 lb I-beam frame and neck form the backbone of the EHB22. Closely spaced 12” crossmembers provide additional deck support, while the treated wood floor is built to handle demanding everyday use.

For wider equipment, the EHB22 comes equipped with diamond plate drive-over fenders, allowing machines with wider tracks or tires to utilize the full deck width. Rear swivel supports help stabilize the trailer during loading and unloading.

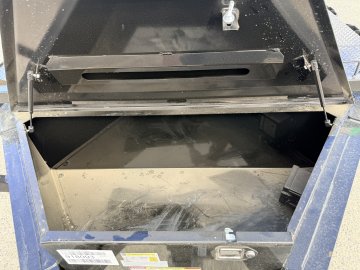

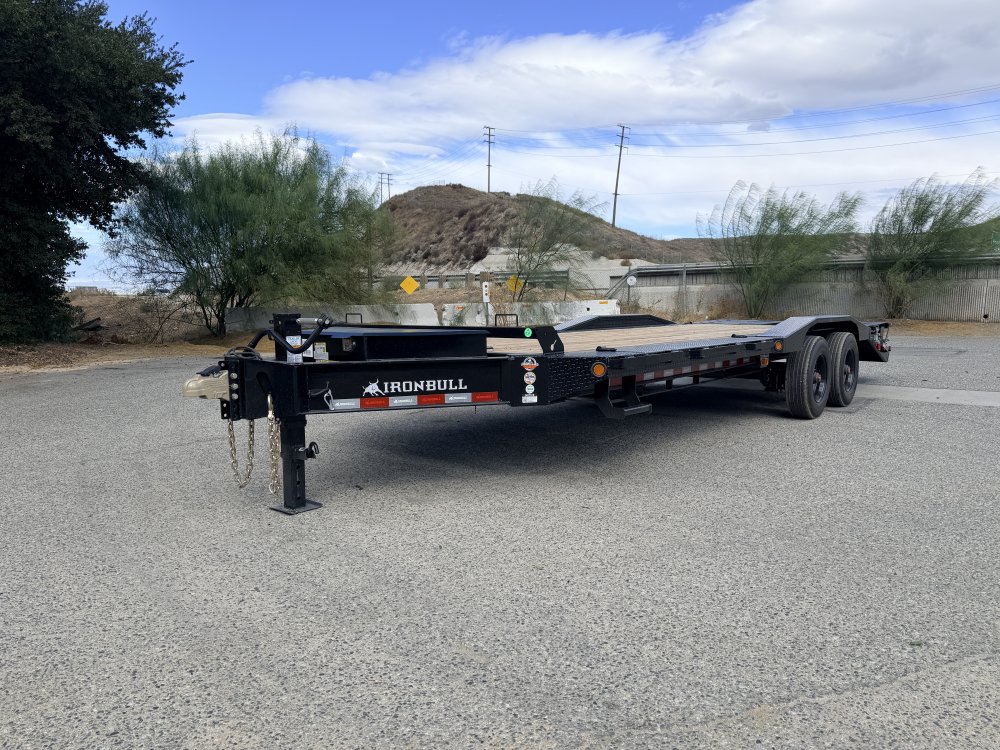

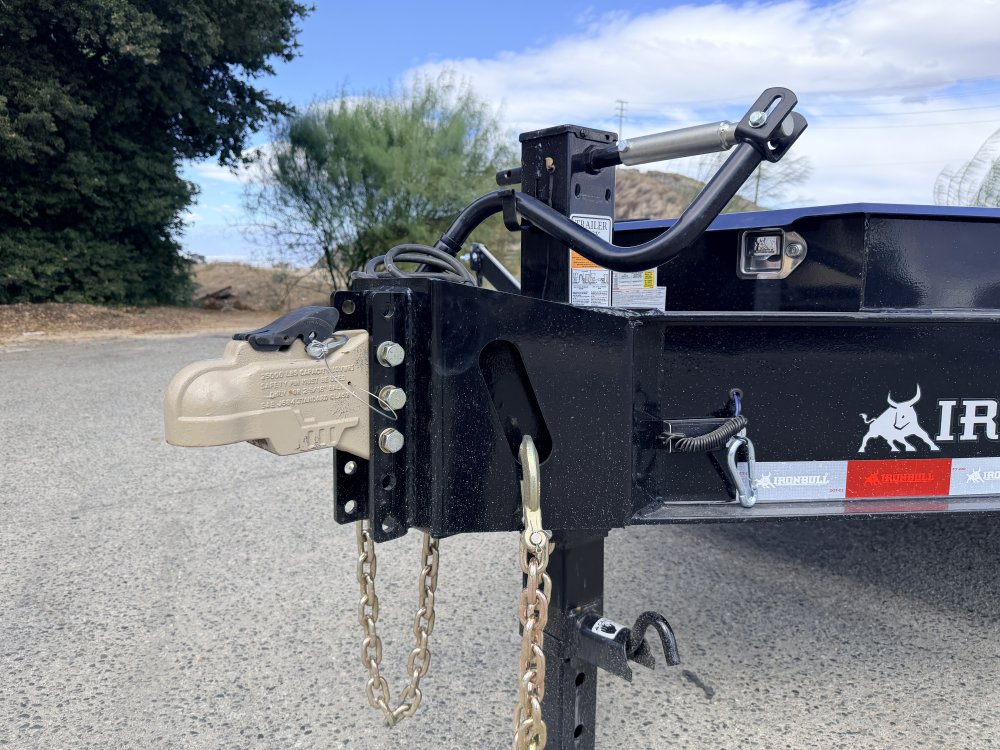

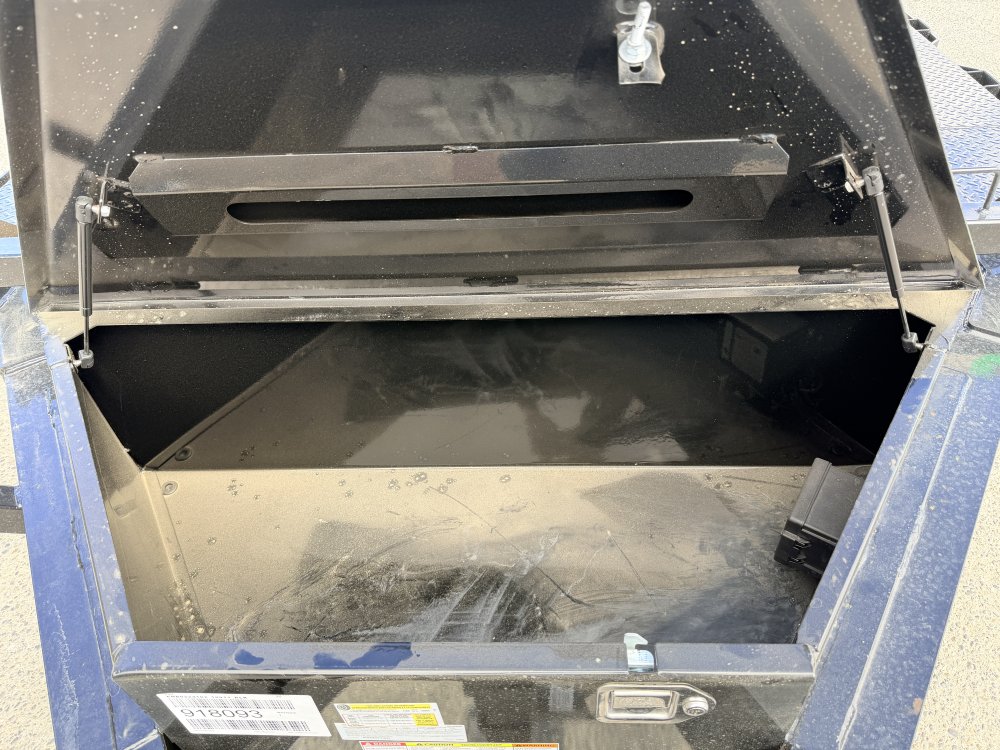

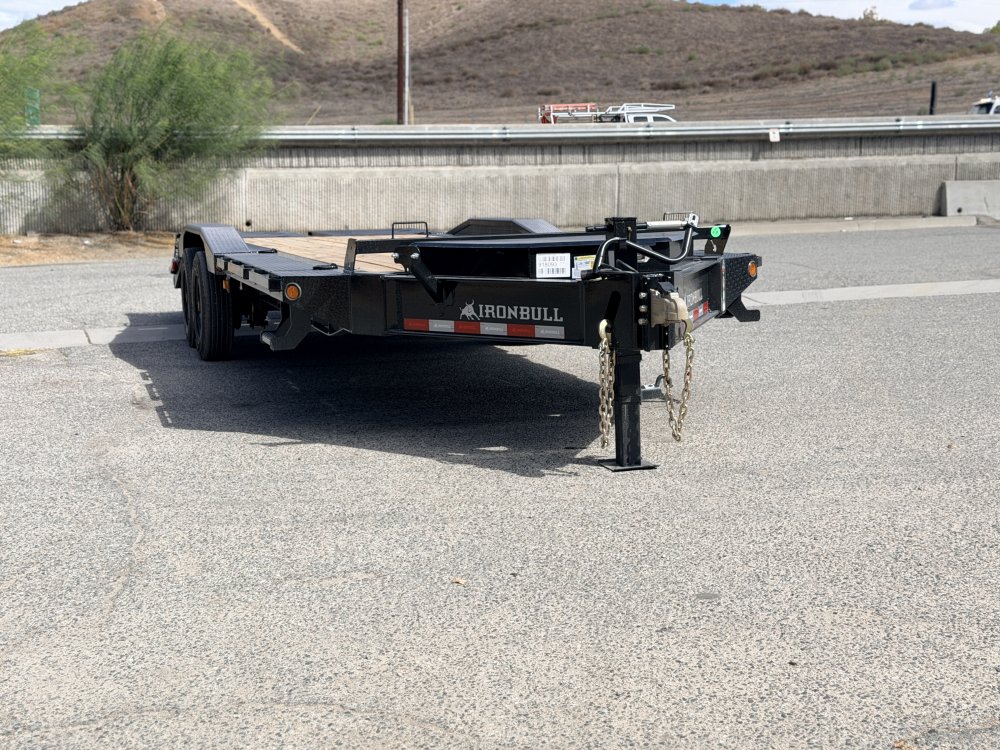

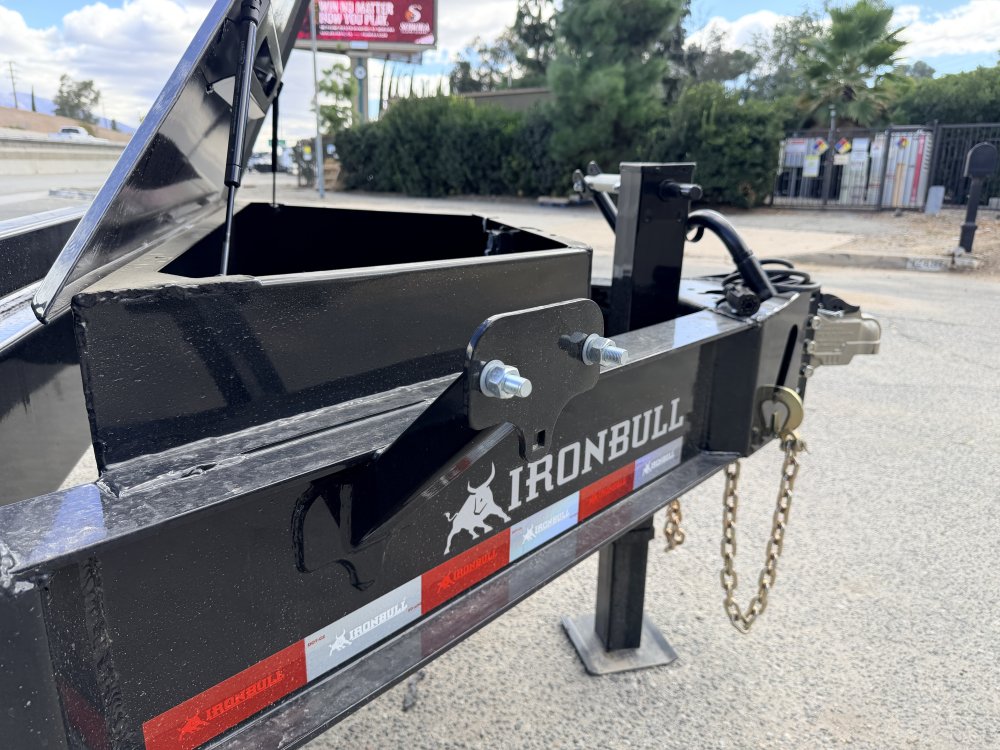

Up front, a full-size toolbox integrated into the tongue provides convenient storage for chains, binders, straps, and tools. The heavy-duty adjustable 25,000 lb 2-5/16” coupler and 10,000 lb spring-loaded drop-leg jack make hookup and leveling straightforward.

KEY FEATURES

• 22,000 lb GVWR
• 102” x 24’ deck
• 4’ self-cleaning dovetail
• 4’ Rampage ramps
• (2) 10,000 lb straight single-wheel axles
• Electric brakes
• 10” x 19 lb I-beam frame
• 10” x 19 lb I-beam neck
• 12” crossmembers using 3” C-channel

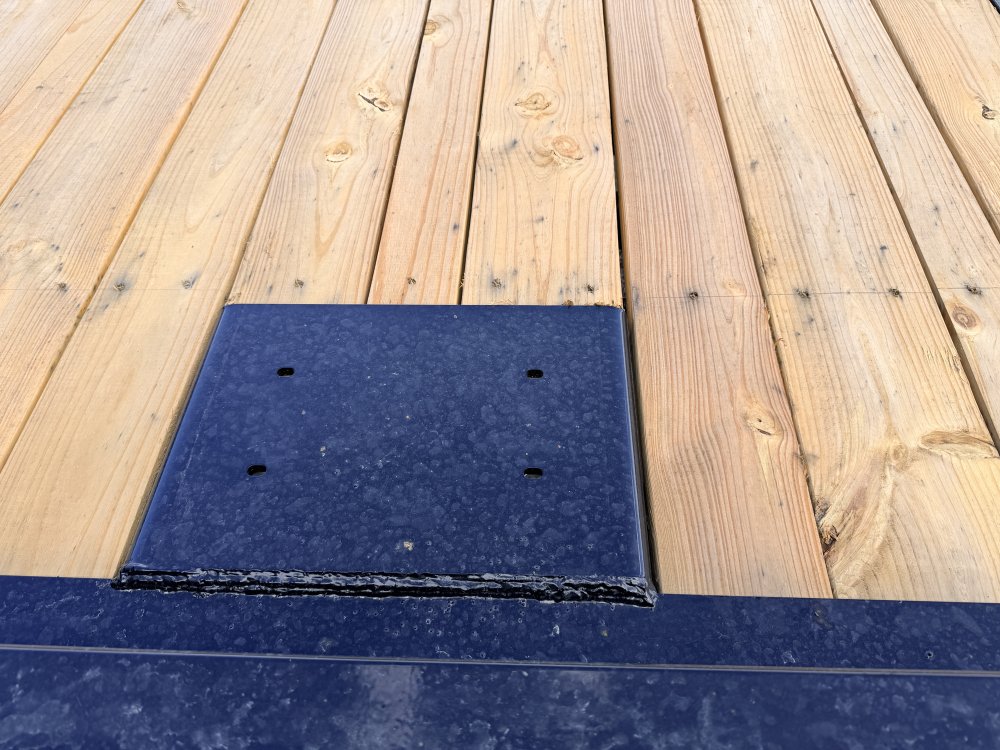

• Treated wood floor

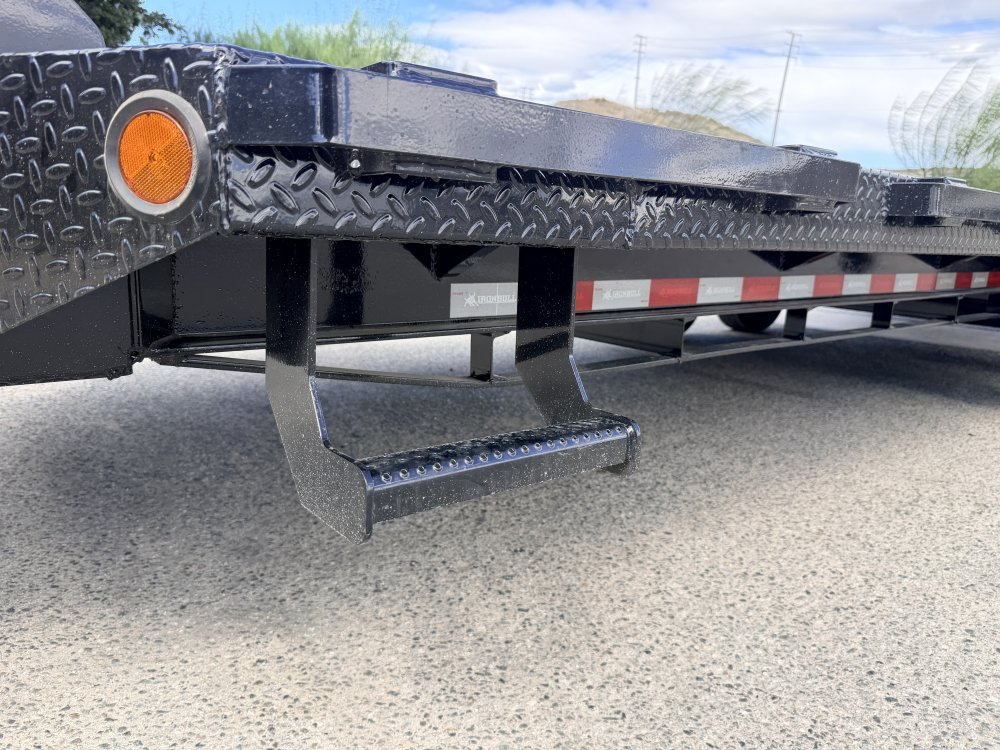

• Diamond plate drive-over fenders
• Full-size front toolbox integrated into tongue
• 25,000 lb adjustable 2-5/16” bumper-pull coupler
• 10,000 lb spring-loaded drop-leg jack

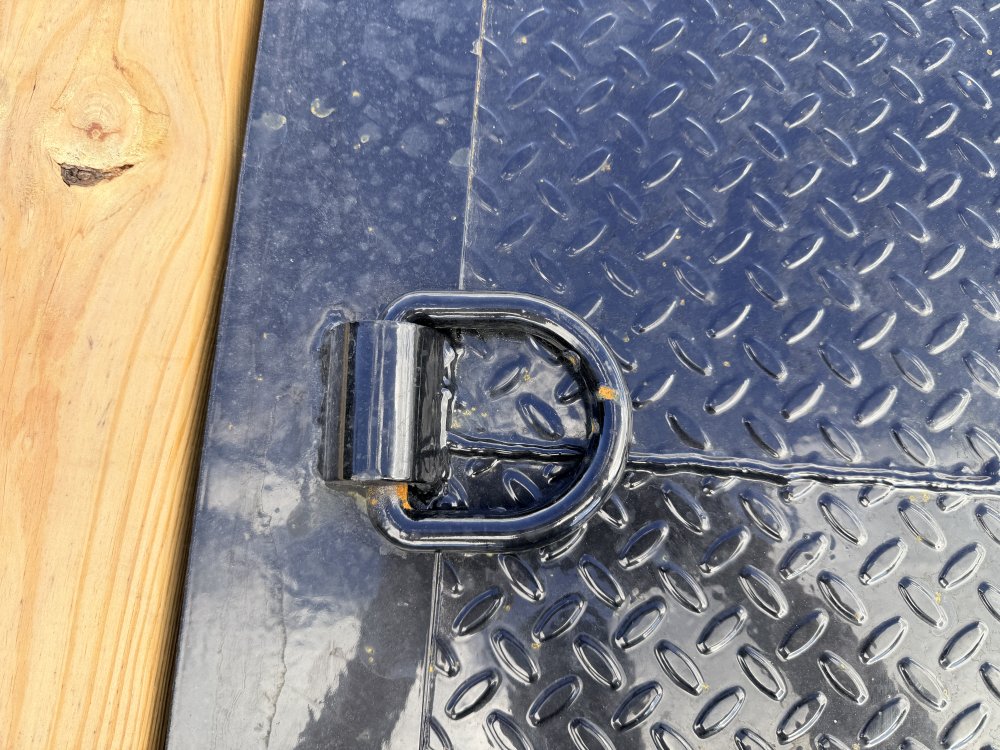

• (6) heavy-duty 3” x 5/8” welded D-rings
• Rear 5,000 lb swivel supports
• Front bumper
• Standard wiring harness and lighting

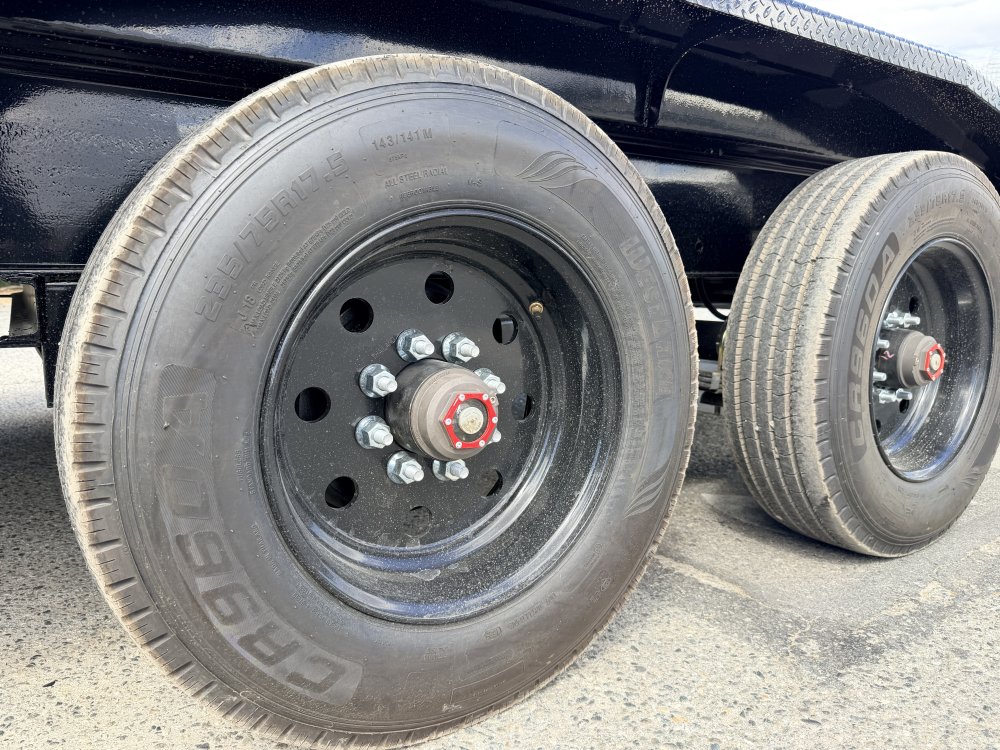

• ST215/75R17.5 Load Range H 18-ply tires
• Spare tire mount
• Black powder-coated finish

BUILT FOR HEAVY EQUIPMENT

The Iron Bull EHB22 is an excellent choice for hauling:

• Skid steers
• Compact track loaders
• Mini excavators
• Tractors
• Construction equipment
• Landscaping equipment
• Agricultural equipment
• Rental equipment
• Commercial machinery

If you need more capacity and strength than a traditional 14K equipment trailer can provide, the Iron Bull EHB22 102x24 delivers the heavy-duty construction and 22K hauling capacity needed for demanding jobs.

AVAILABLE AT YUCAIPA TRAILERS

Yucaipa Trailers
31107 Outer Hwy 10
Redlands, CA 92373

Call or Text: 909-794-6971
www.yucaipatrailers.com

Financing options available OAC. Lease-to-own programs may also be available.

Subject to prior sale. Please verify all specifications and installed equipment prior to purchase.
