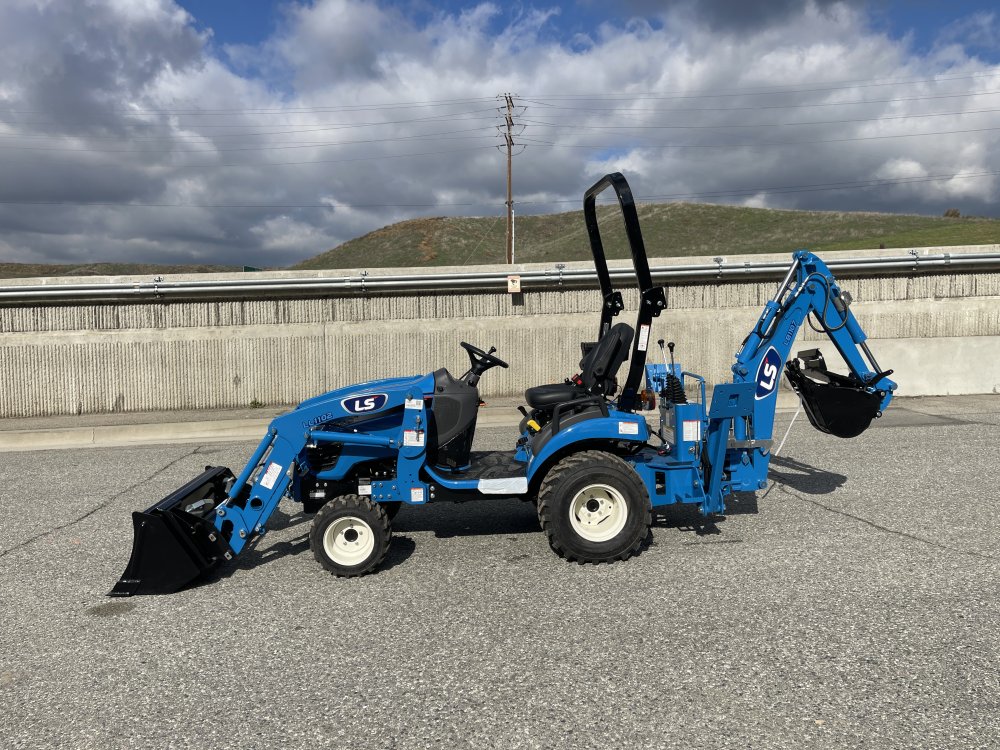

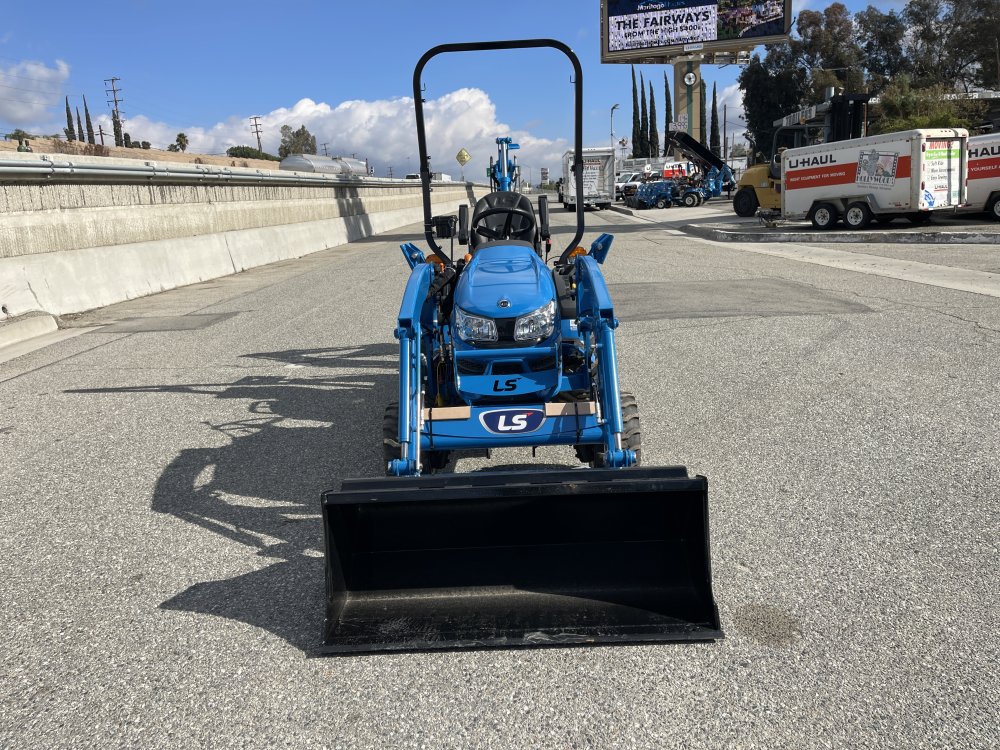

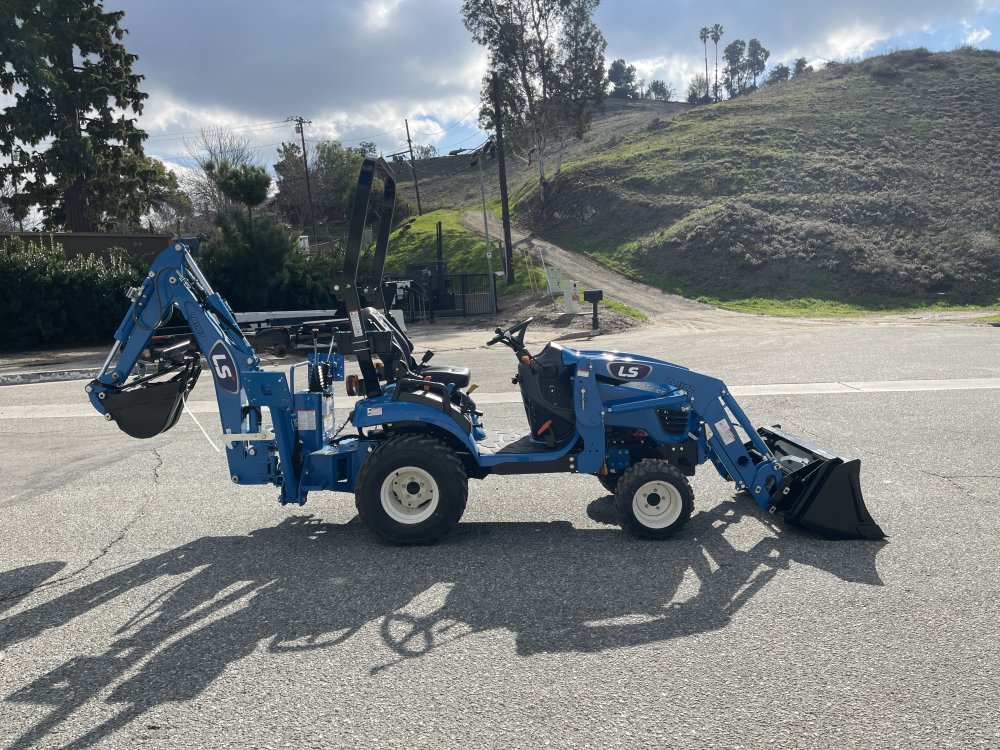

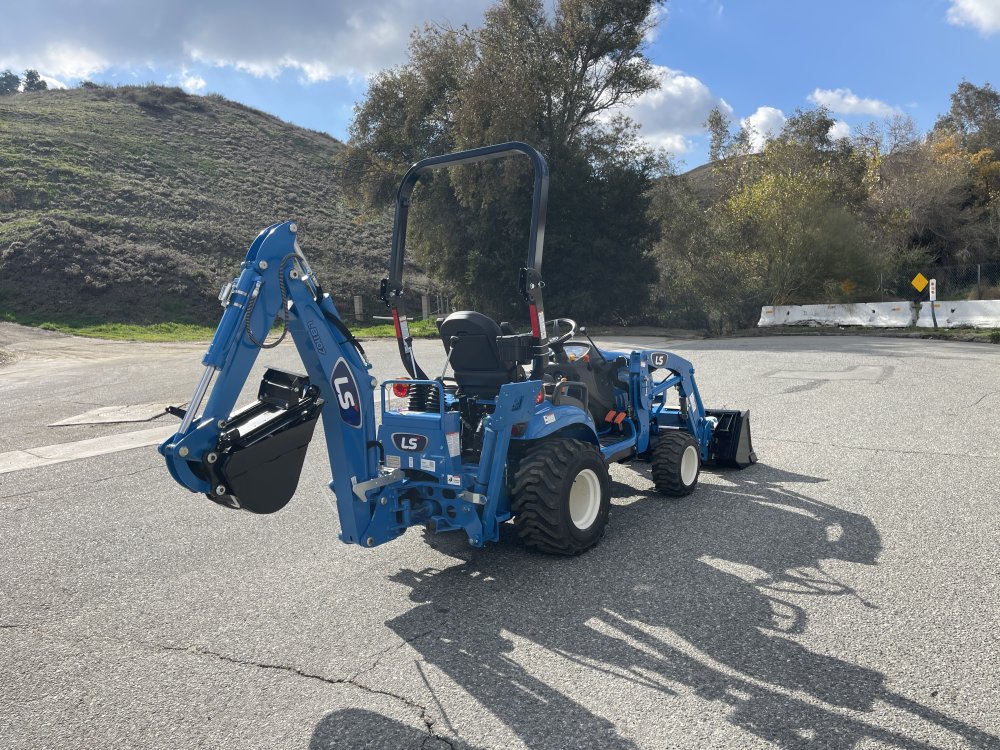

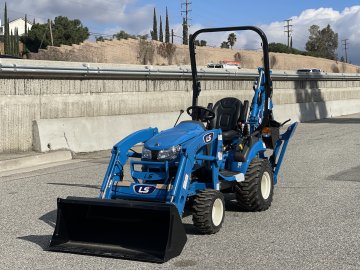

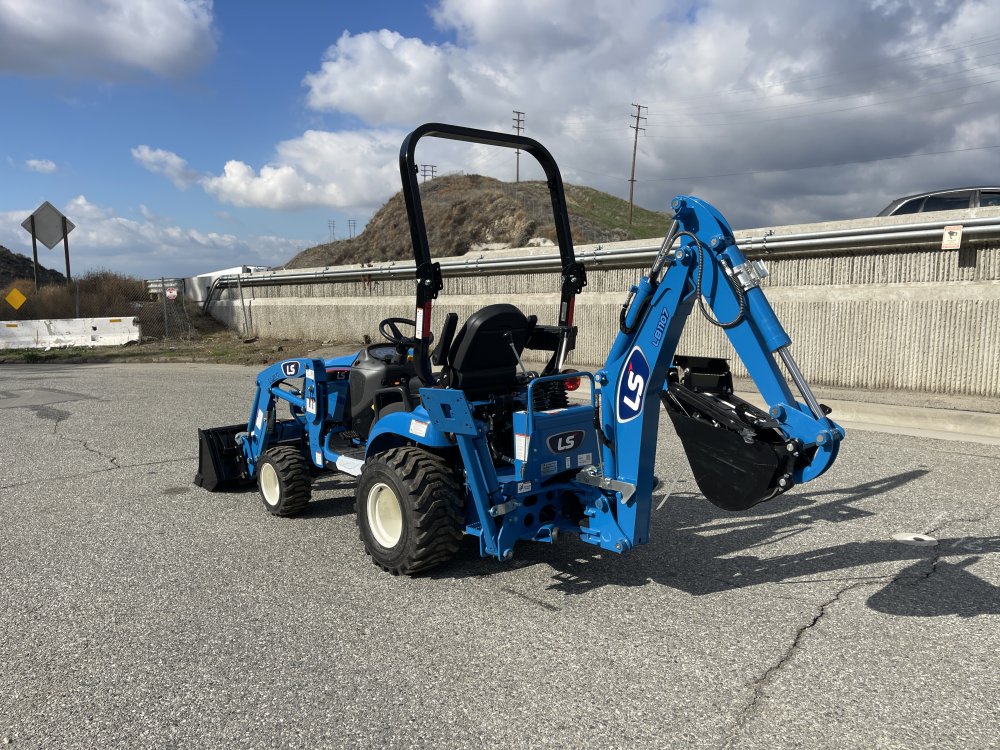

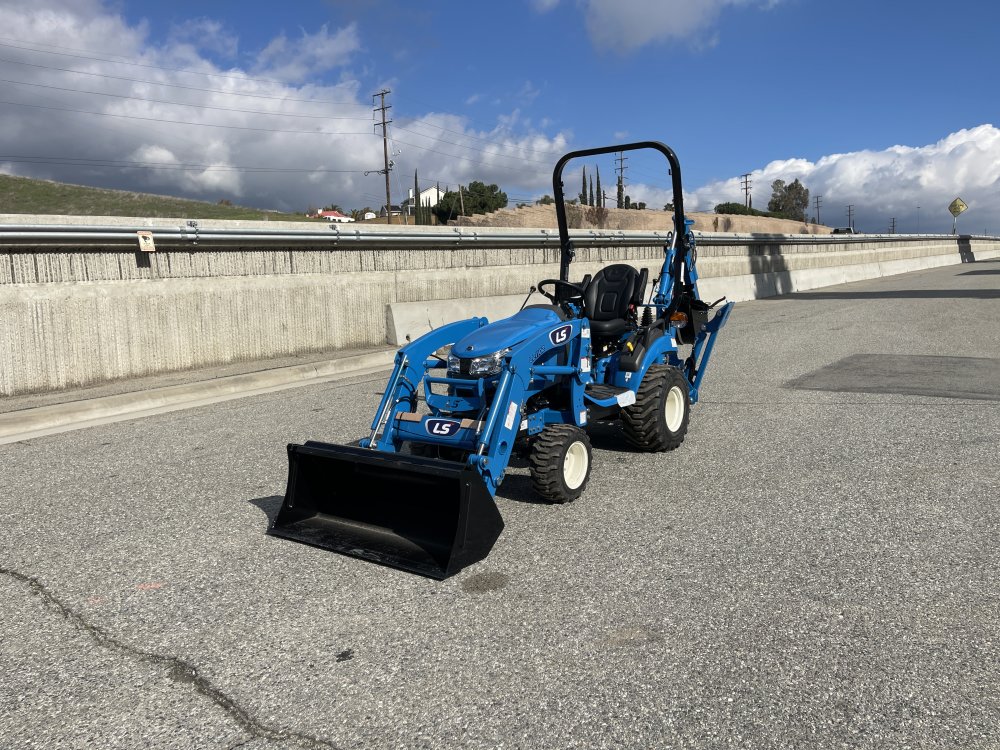

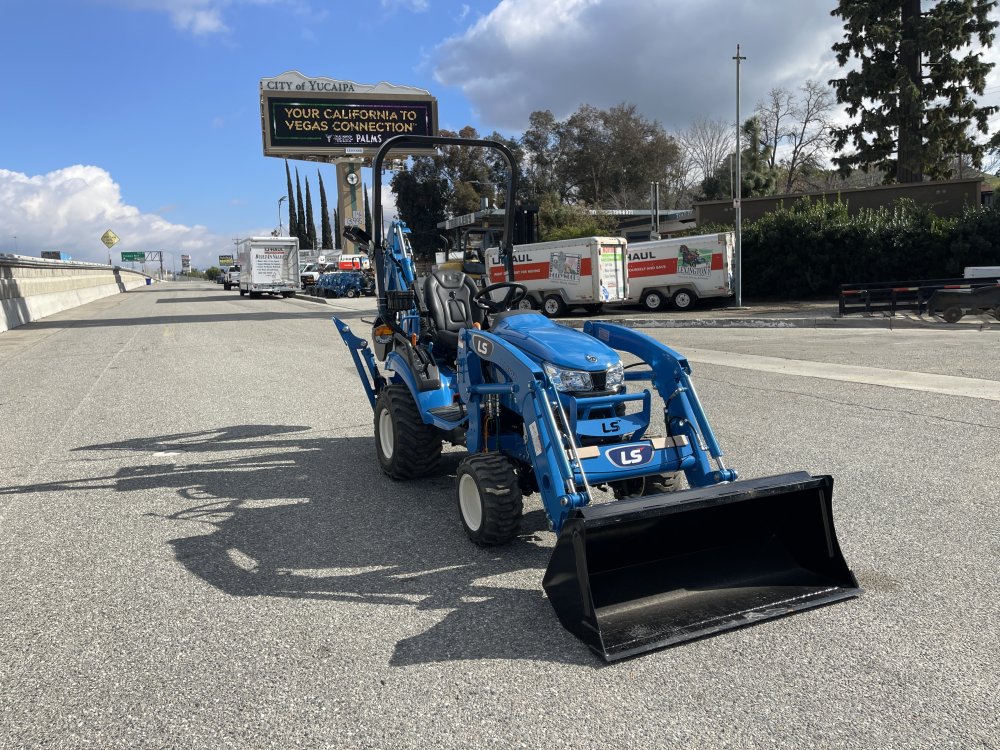

The LS MT125HST is a powerful, full-featured 21.5 HP sub-compact tractor engineered for homeowners, small farms, and property maintenance. Equipped with the LL1700 Front Loader and the LB1107 Backhoe with a 9-inch trenching bucket, this package provides complete lifting, digging, grading, mowing, and material-handling capability—all in a compact, easy-to-operate machine.

Below is a full, detailed breakdown of tractor, loader, and backhoe specifications.

Engine
• Model: LS 3-cylinder diesel
• Horsepower: 21.5 HP
• Engine RPM: 2,800 max
• Displacement: 68.5 cu. in. (1.12 L)
• Fuel Capacity: 6.6 gallons
• Cooling System: Liquid-cooled diesel
• Emissions: Tier 4 compliant (no DPF required)

Transmission
• Type: 2-range Hydrostatic (HST)
• Control: Twin side-by-side forward/reverse pedals
• Cruise Control: Yes
• Final Drive: Mechanical

PTO & Hydraulics
• Rear PTO: Independent, 540 RPM
• Mid PTO: 2,000 RPM
• PTO HP: 15.0 HP
• Hydraulic Flow (Total): 8.2 GPM
• Implement Flow: 4.7 GPM
• Steering Flow: 3.5 GPM
• 3-Point Hitch: Category 1 Sub-Compact
• 3-Point Lift Capacity @ ball ends: 1,190 lbs
• 3-Point Lift Capacity @ 24”: 780 lbs

Dimensions & Weight
• Wheelbase: 57.5 inches
• Overall Length (w/o attachments): 97 inches
• Height to ROPS: 87 inches
• Tractor Weight (ROPS): 1,485 lbs

Drive System & Tires
• 4WD: Standard
• Steering: Hydrostatic power steering
• Brakes: Wet, multi-disc
• Tire Options: R4 industrial or turf tires

Performance
• Maximum Lift Height at Pivot Pin: 84 inches (7 ft)
• Clearance with Bucket Dumped: 61 inches
• Lift Capacity to Full Height at Pivot Pin: 1,007 lbs
• Lift Capacity @ 500mm Forward: 660 lbs
• Breakout Force at Pivot Pin: 2,039 lbs
• Breakout Force @ 500mm: 1,450 lbs

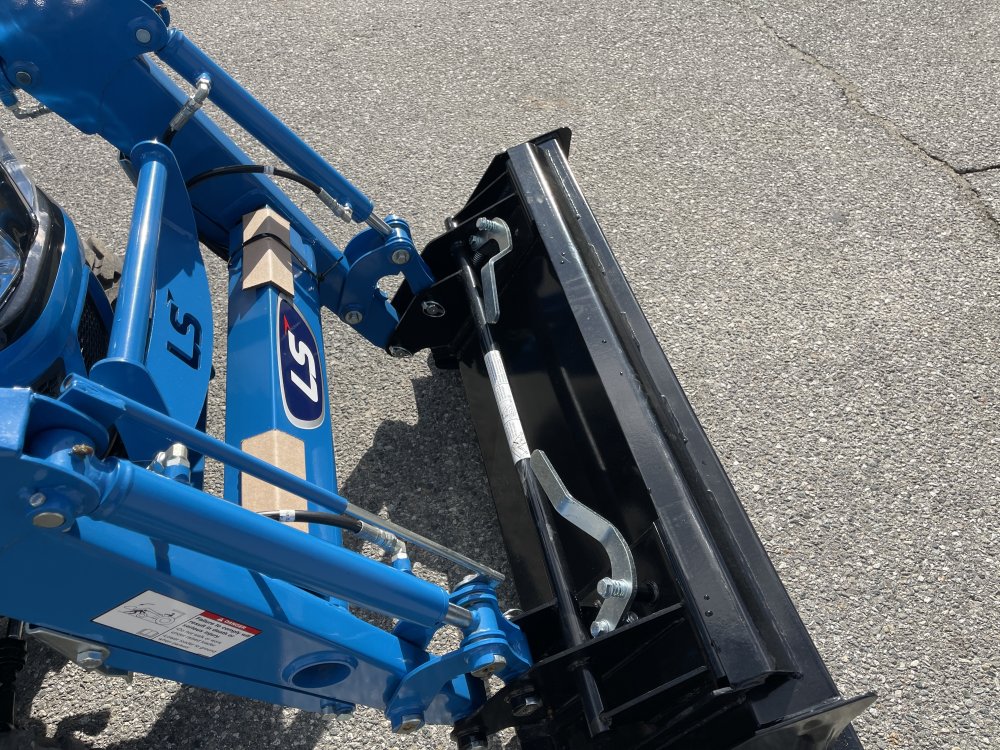

Bucket & Operation
• Bucket Width Options: 48" or 50"
• Bucket Type: Standard front loader bucket
• Bucket Dump Angle: 45°
• Bucket Rollback Angle: 30°

Hydraulic Cycle Times (Approx.)
• Raise: 3.7 sec
• Lower: 2.5 sec
• Dump: 1.9 sec
• Rollback: 2.3 sec

Mounting System
• Quick-mount loader frame with built-in parking stands
• Quick-connect hydraulic couplers
• Loader removal in minutes without tools

Loader Weight
• Approx. 300 lbs (varies by bucket width)

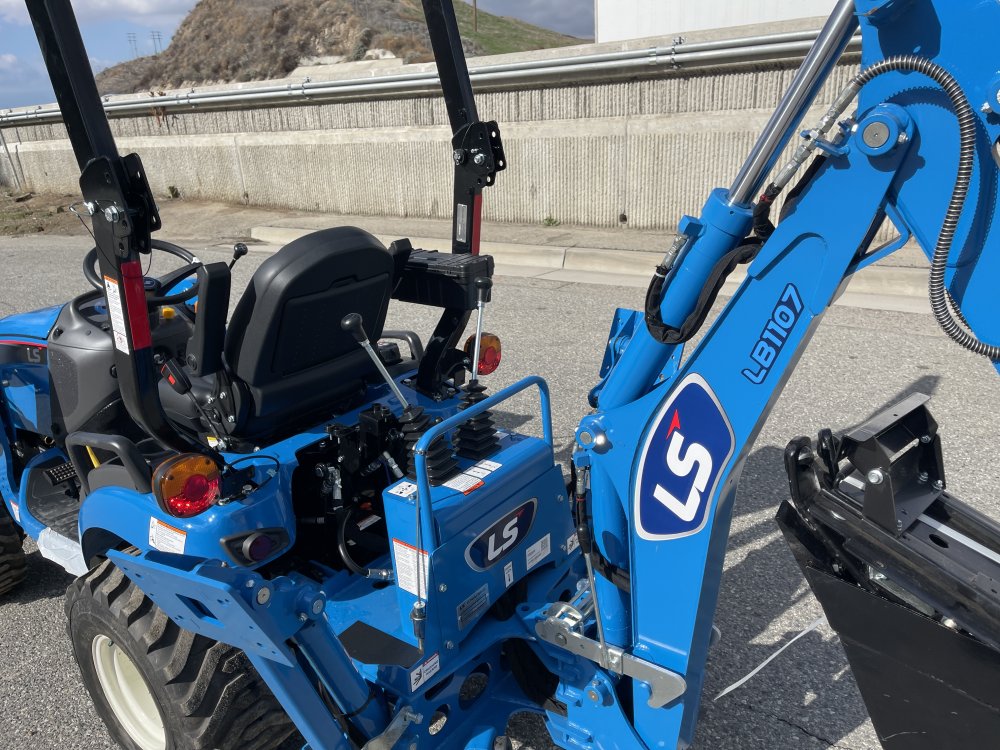

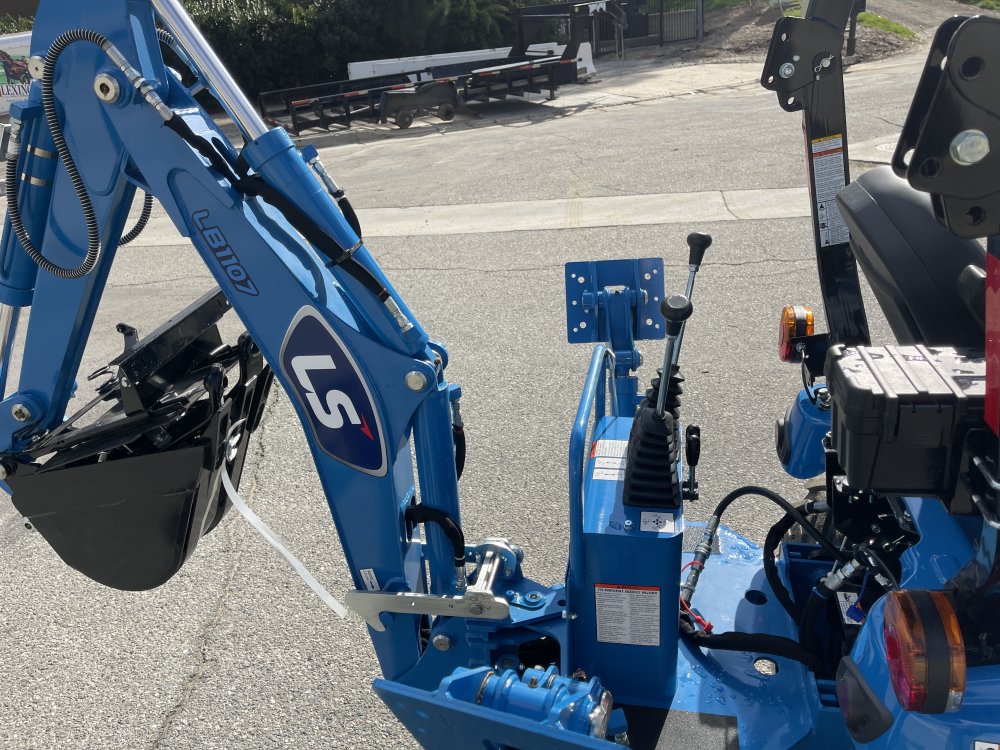

Digging Performance
• Digging Depth: 76.3 inches (6.35 ft)
• Reach from Swing Pivot: 104 inches (8.6 ft)
• Maximum Operating Height: 119 inches (9.9 ft)
• Swing Arc: 140°

Bucket & Breakout Forces
• Bucket Width (included): 9-inch trenching bucket
• Bucket Digging Force: 3,748 lbs
• Dipperstick Force: 2,240 lbs

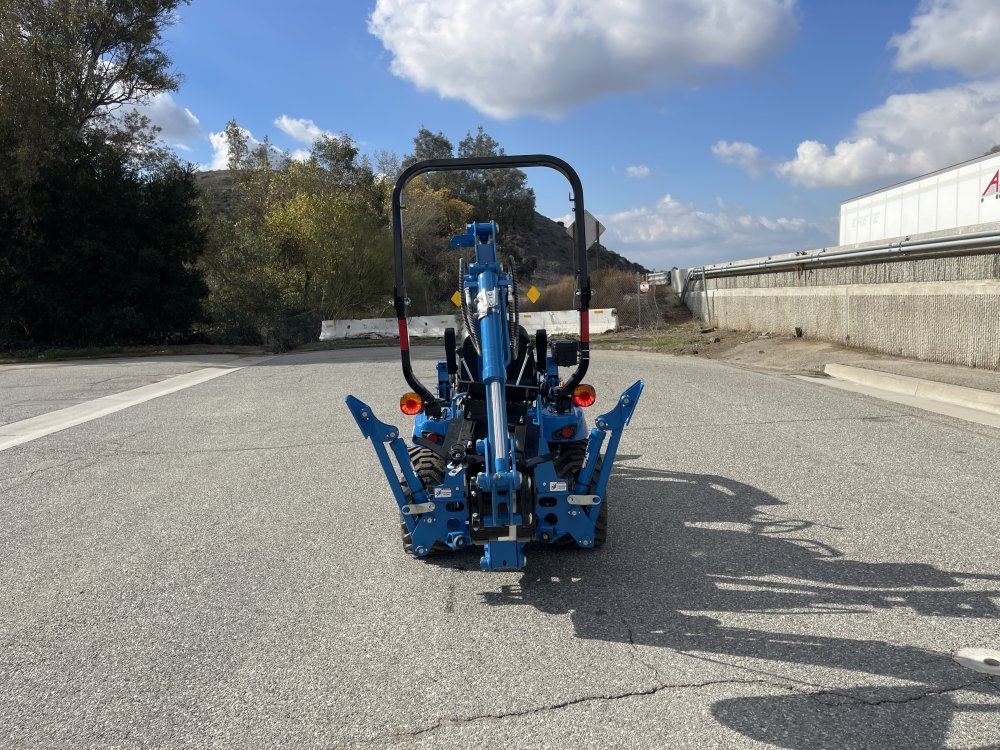

Stabilizers & Operation
• Stabilizer Spread (down): 68.4 inches
• Stabilizer Spread (up): 45.7 inches
• Subframe-mounted backhoe for maximum frame strength
• Hydrostatic swing and boom/dipper operation

Hydraulics
• Uses tractor’s hydraulic system
• Smooth, fully proportional controls

Backhoe Weight
• Approx. 700 lbs (varies slightly with bucket)

• Trenching, irrigation, and utility work

• Moving dirt, gravel, and landscape materials

• Digging footings, planting trees, and drainage work

• Driveway maintenance, land leveling, and grading

• All-around property and acreage maintenance

• Homeowners, ranchers, and small farms

The MT125HST Tractor with LL1700 Loader and LB1107 Backhoe gives you a full digging and lifting machine in one compact unit. With strong hydraulics, true 4WD, hydrostatic transmission, and factory-matched attachments, this package delivers outstanding capability and value for property owners who need big performance in a small footprint.
