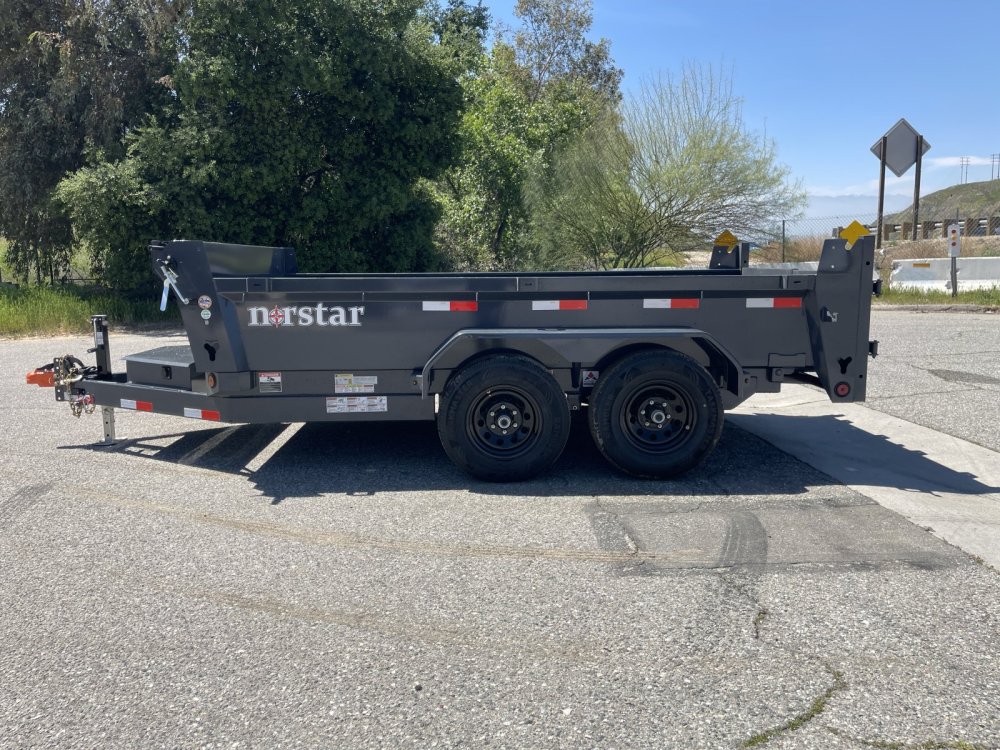

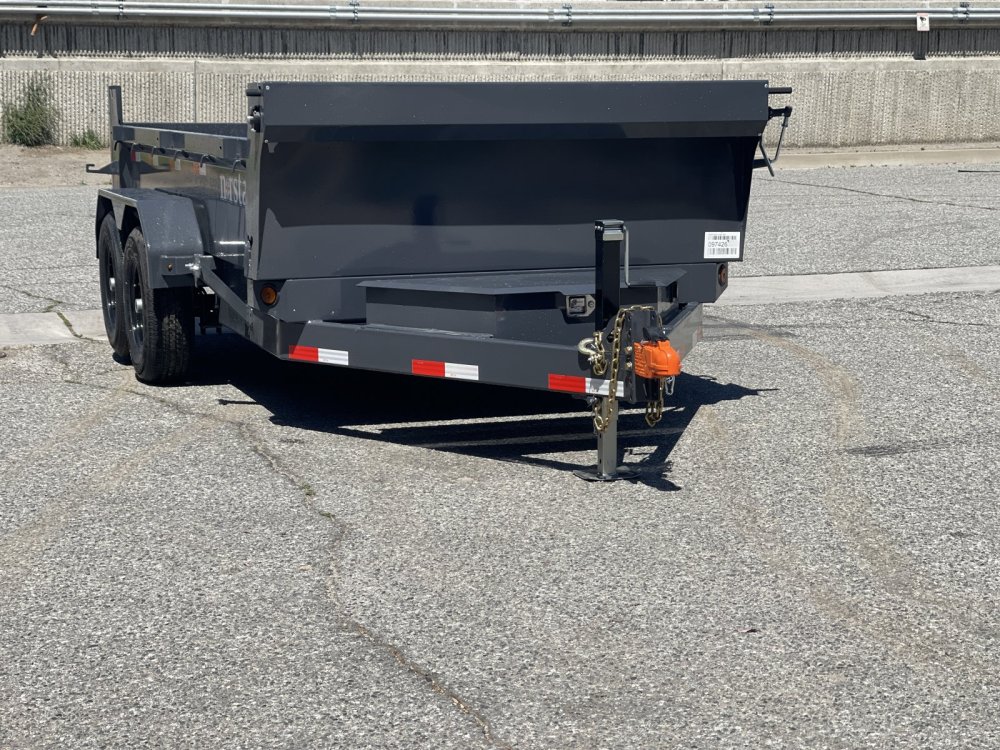

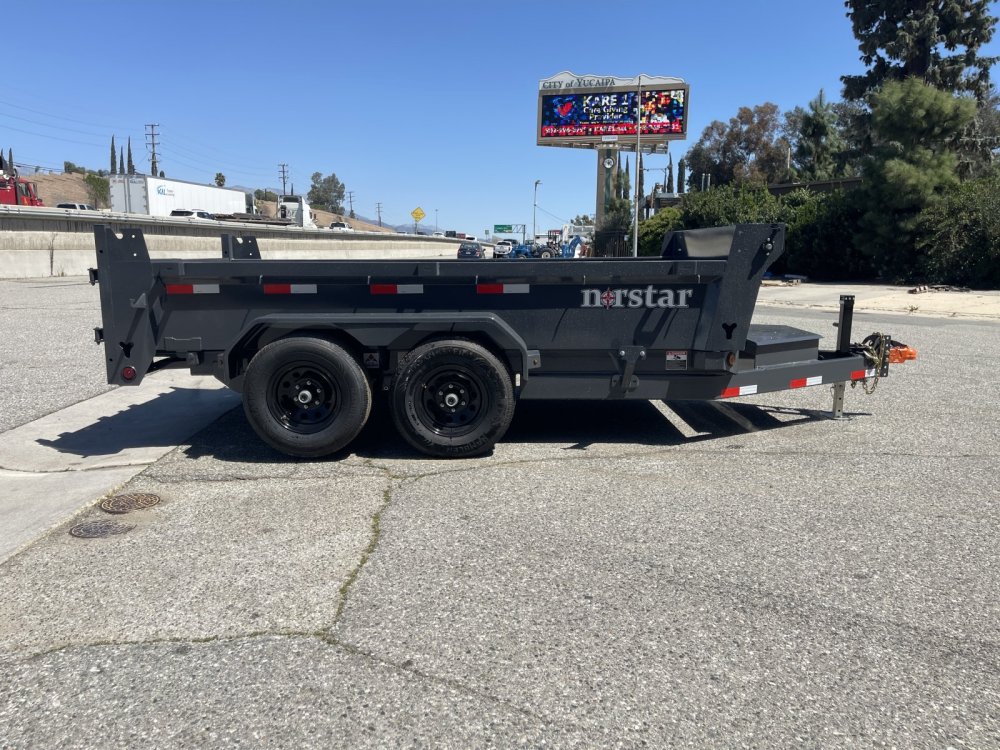

2026 Norstar DCB10K 72x12 Dump Trailer – 9,900 LB GVWR

The Norstar DCB10K 72x12 General Duty Dump Trailer is built for customers who need the strength and versatility of a tandem-axle dump trailer without stepping all the way up to a full 14K model.

With a 9,900 lb GVWR, tandem 5,200 lb electric-brake axles, a heavy-duty 10-gauge smooth steel floor, and Norstar’s TH-516 scissor hoist, the DCB10K is an excellent choice for landscaping, property maintenance, construction, cleanup work, equipment hauling, and everyday material transport.

The compact 72” x 12’ dump bed makes this trailer easier to maneuver in residential areas, job sites, and tighter spaces while still providing enough capacity for serious work.

WHY CHOOSE THE NORSTAR DCB10K?

The DCB10K fills the gap between lighter-duty dump trailers and larger 14K commercial models.

Its low 24” deck height helps make loading equipment easier, while the included 12” x 80” slide-in ramps allow you to haul compact tractors, mowers, landscaping equipment, and other machinery in addition to traditional dump loads.

The trailer comes standard with 20” tall 12-gauge steel sides, giving you a strong and durable dump body while keeping overall trailer weight manageable.

A power up / power down hydraulic system operates the heavy-duty scissor hoist for controlled raising and lowering of the dump bed.

TRAILER SPECIFICATIONS

• Model: Norstar DCB10K
• Size: 72” x 12’
• GVWR: 9,900 lbs
• Approximate Trailer Weight: 3,020 lbs
• Axles: (2) 5,200 lb cambered axles
• Brakes: Forward self-adjusting electric brakes
• Suspension: Multi-leaf slipper spring with equalizer
• Deck Height: Approximately 24”
• Paint Color: Gray

FRAME & CONSTRUCTION

The DCB10K is built on a rugged tube-frame platform designed to handle demanding everyday use.

Standard Construction Features

• 2” x 6” x 3/16” tube frame
• 2” x 6” x 3/16” tube tongue
• Heavy-duty 11-gauge runners/crossmembers

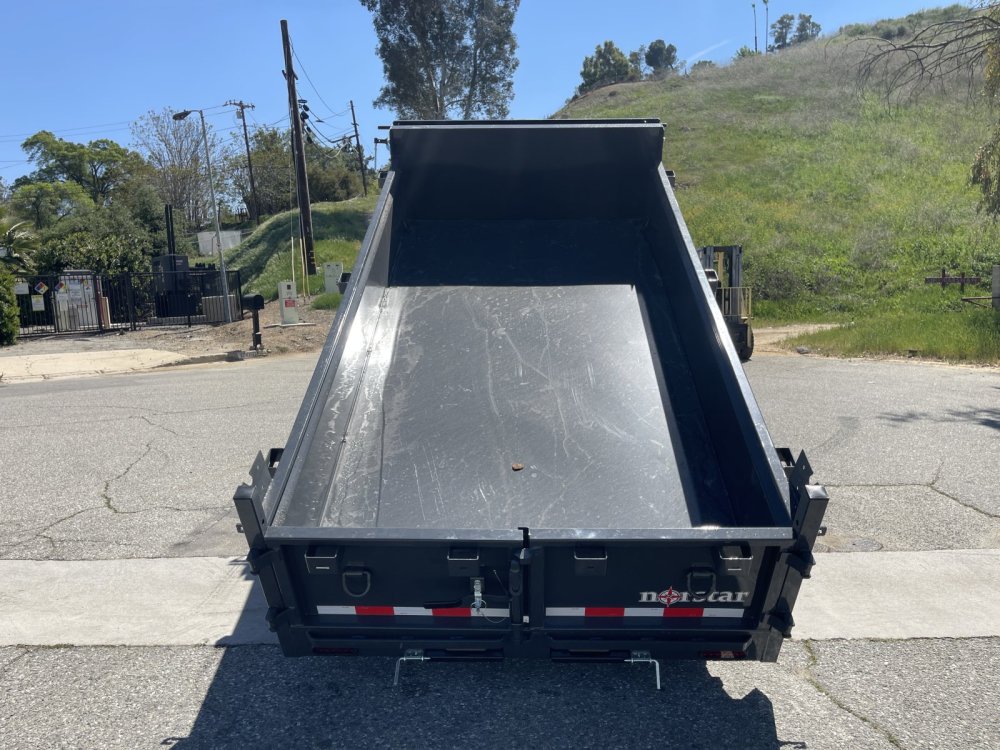

• 10-gauge smooth steel floor
• 20” tall 12-gauge steel sides
• 9” x 66” smooth plate double-broke fenders
• Powder-coated gray finish
• Three stake pockets along each side
• J-hooks along the sides and rear for additional cargo control

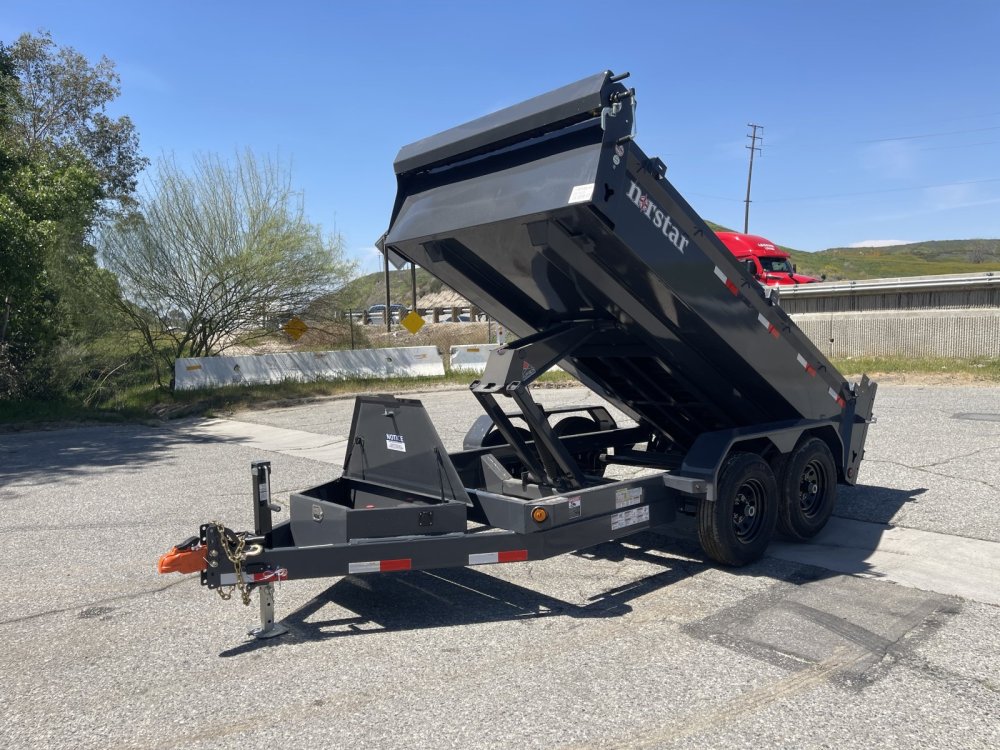

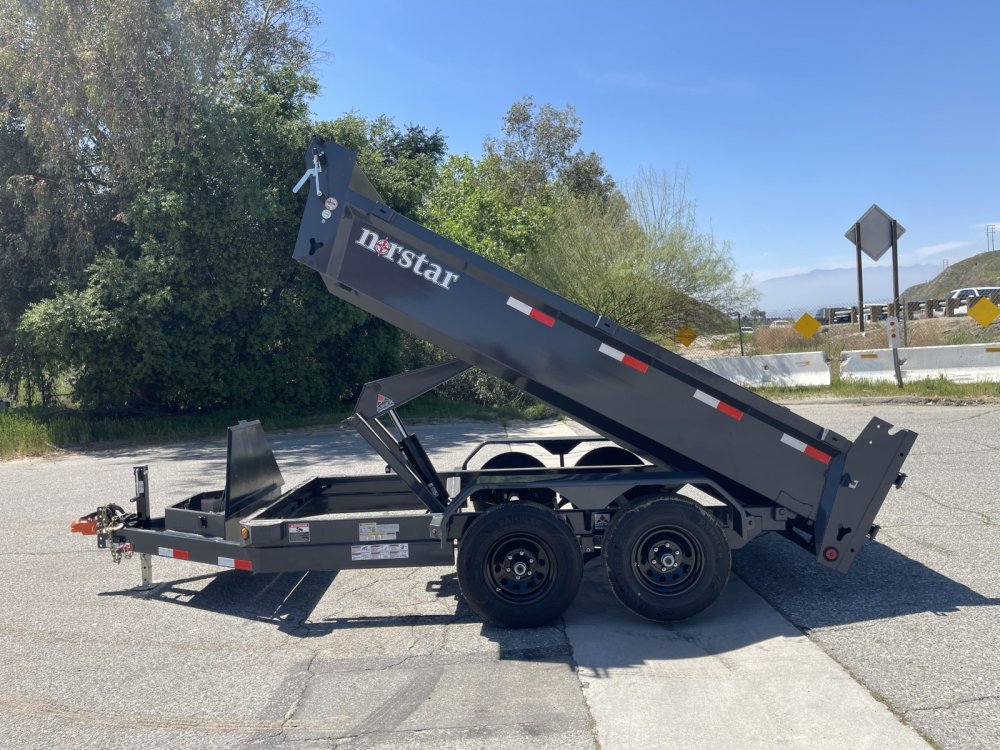

HYDRAULIC DUMP SYSTEM

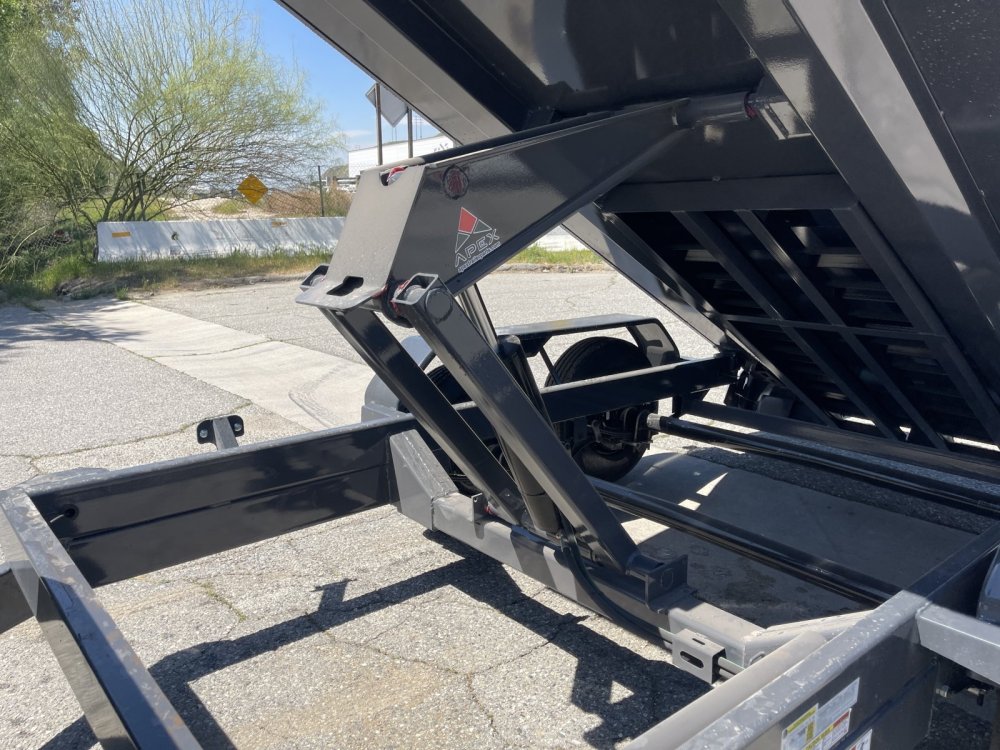

The Norstar DCB10K uses a heavy-duty scissor-hoist system designed for dependable lifting performance.

Hydraulic Features

• TH-516 scissor hoist
• Power up / power down hydraulic pump
• 12V deep-cycle battery

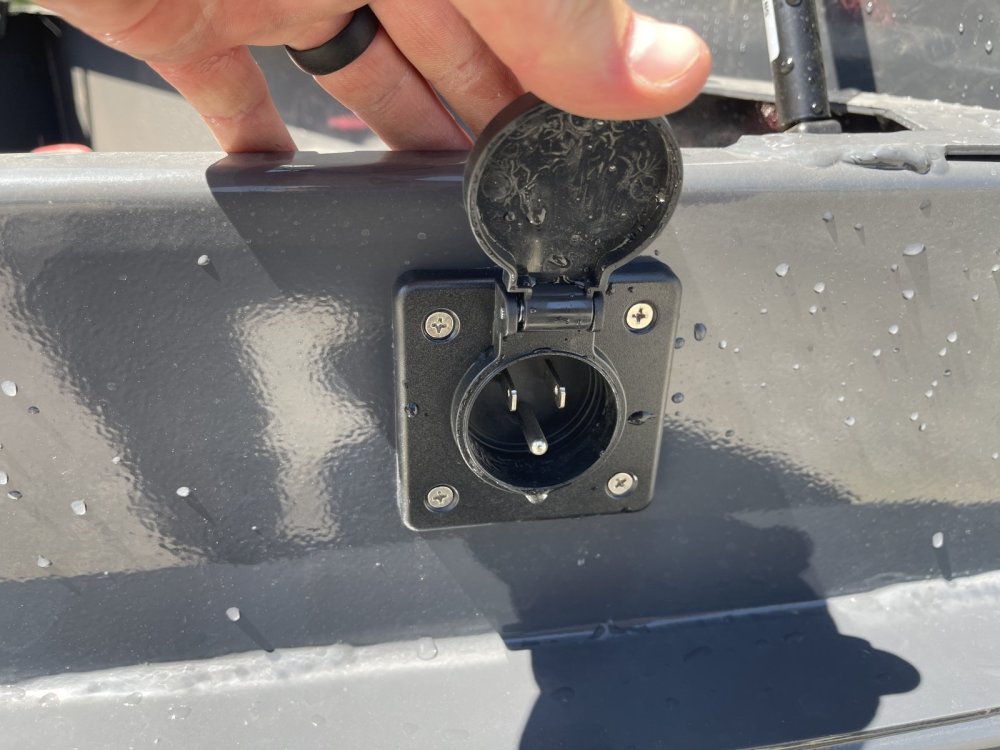

• 5-amp 110V onboard battery charger

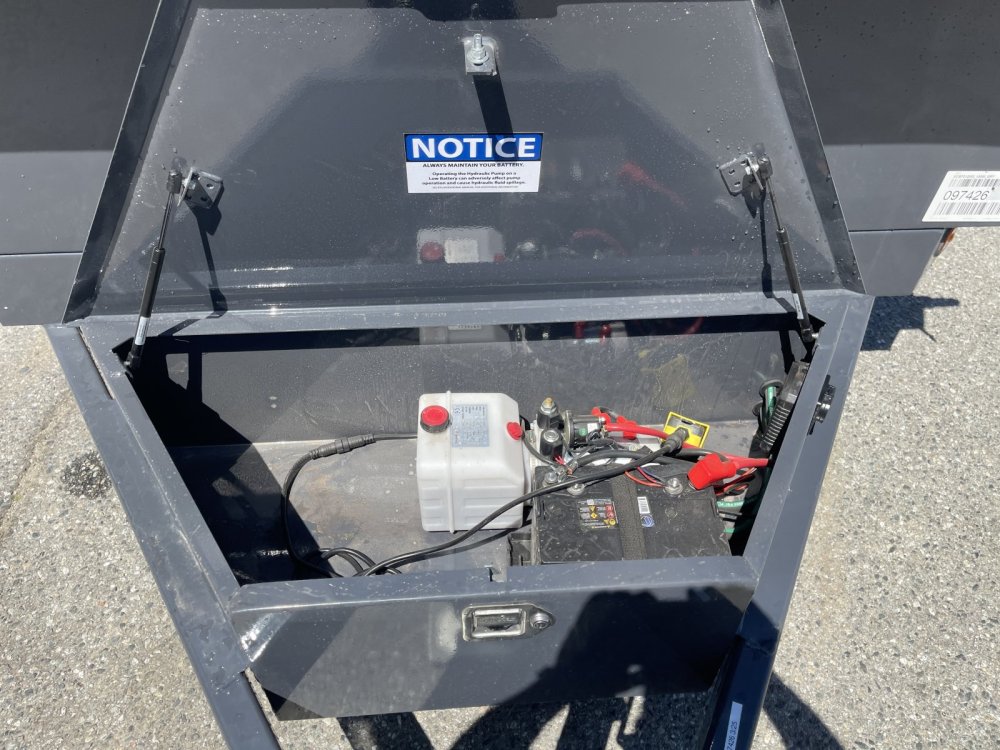

• Lockable front-mounted pump and battery box
• Controlled hydraulic lowering
• Easy-access hydraulic components

The power-down system gives the operator more control over the dump bed than a gravity-down-only setup.

AXLES, BRAKES & SUSPENSION

The DCB10K is equipped with tandem 5,200 lb axles for stability and dependable towing.

Running Gear

• (2) 5,200 lb cambered axles
• Quick-lubricating hubs
• Forward self-adjusting electric brakes
• Multi-leaf slipper spring suspension
• Equalizer suspension system
• Electric breakaway system with cable
• 7-way RV trailer plug

TIRES & WHEELS

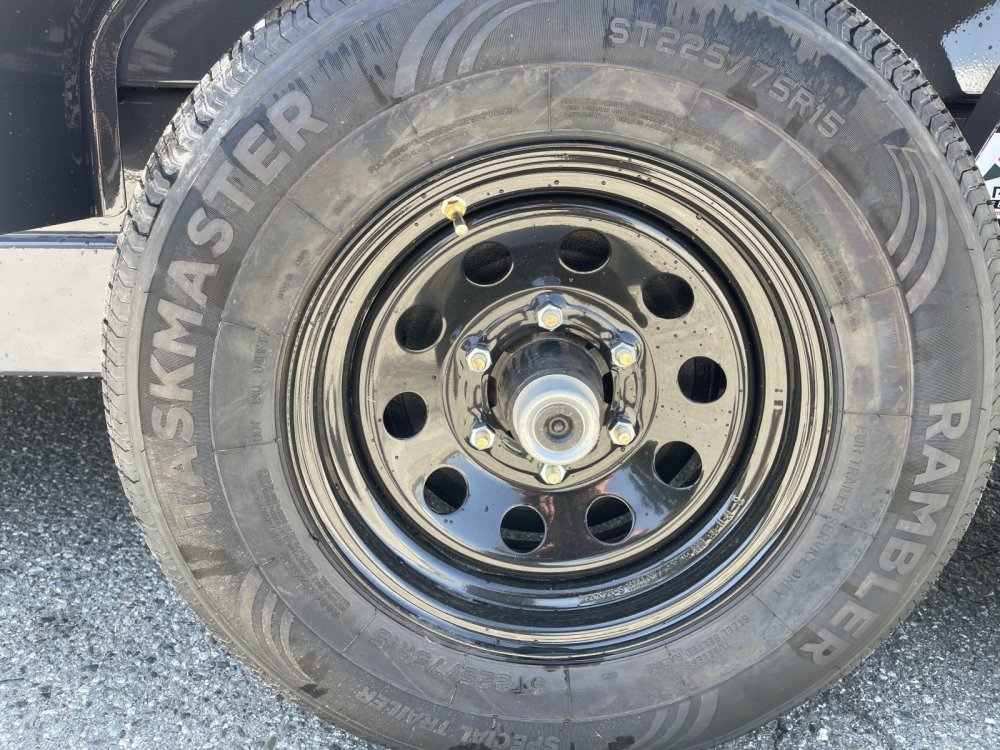

• ST225/75R15 radial tires
• Load Range D
• Black mod steel wheels
• 6 on 5.5 bolt pattern
• Side-mounted spare tire mount
• Spare tire sold separately unless specifically listed with the trailer

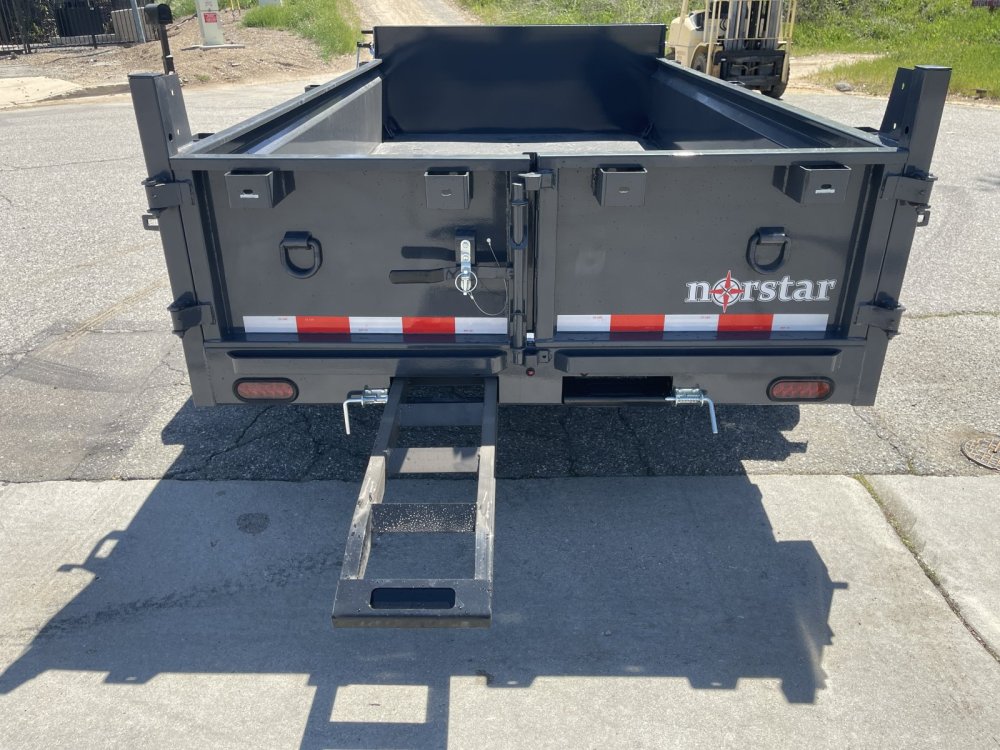

LOADING RAMPS

One of the most useful features of the DCB10K is its ability to haul equipment in addition to loose material.

The trailer includes:

• 12” x 80” slide-in ramps
• Low approximately 24” deck height
• Equipment-friendly loading setup

This makes the DCB10K a great option for customers hauling compact tractors, lawn equipment, landscaping machinery, and other small equipment.

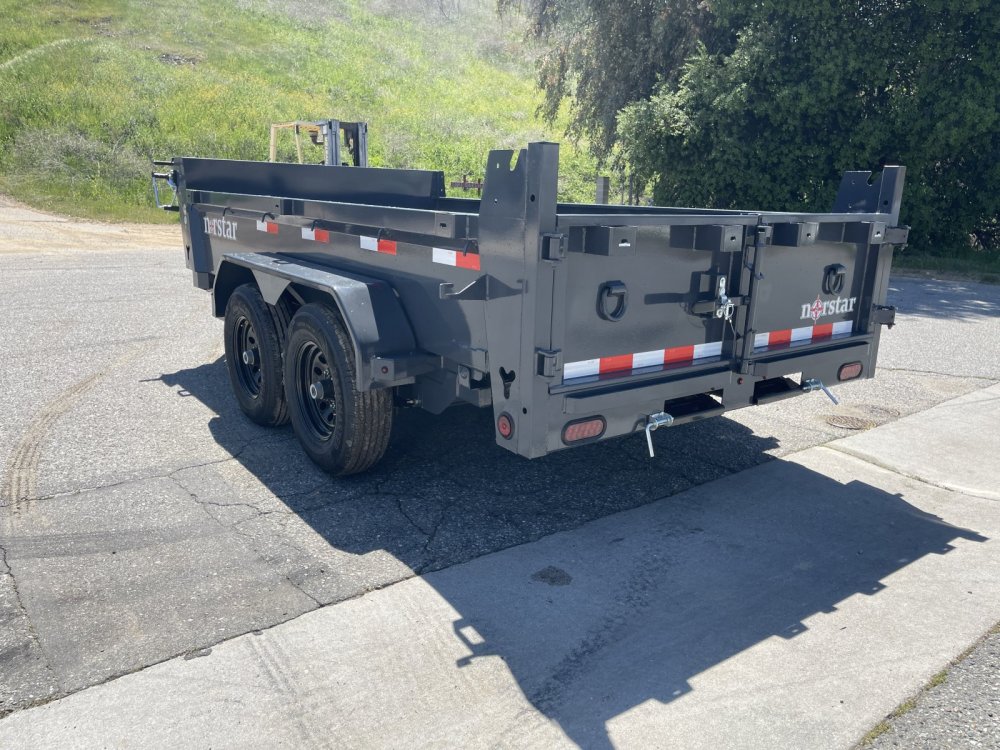

REAR GATE

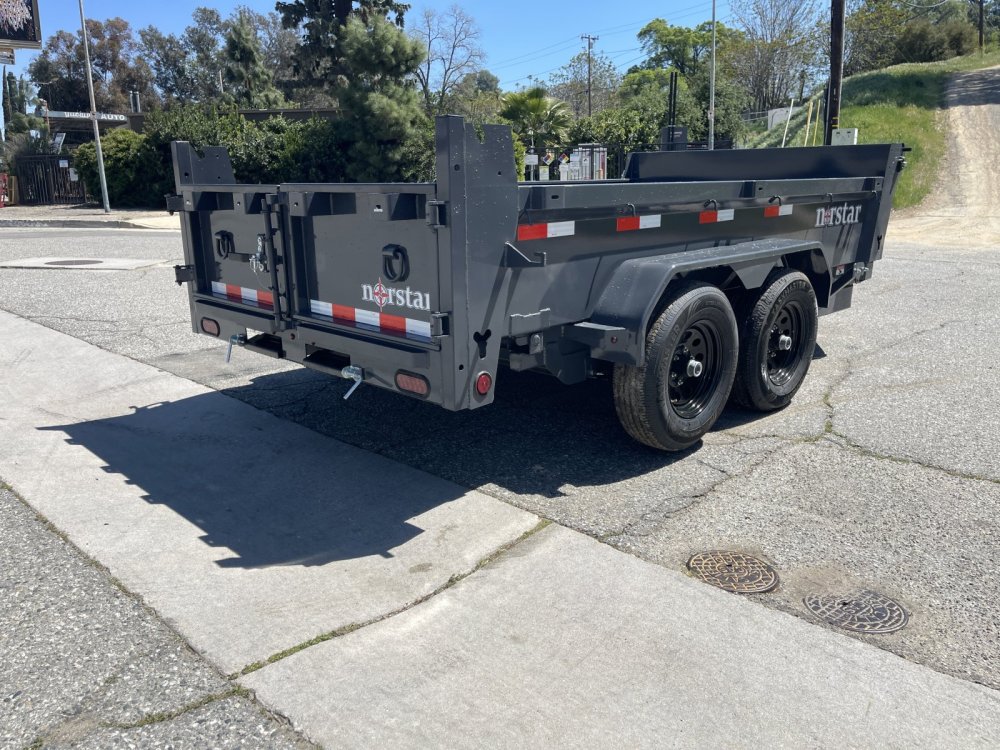

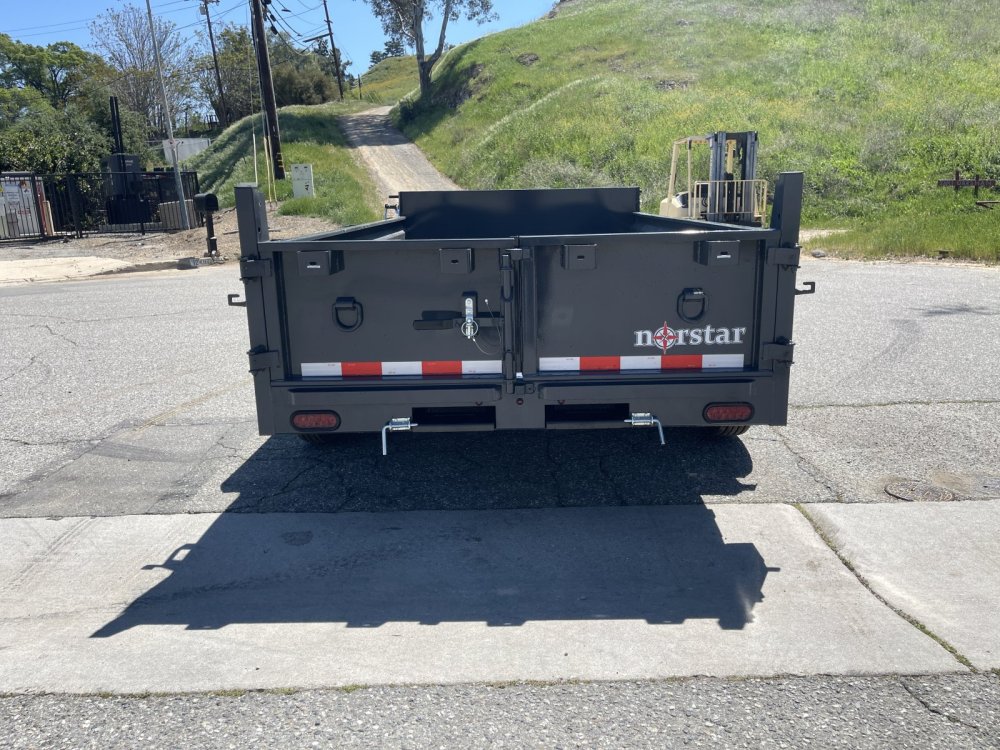

The trailer comes standard with barn-door rear gates, giving you wide-open access to the dump bed for loading, unloading, and equipment use.

Barn doors are especially convenient when hauling:

• Equipment
• Brush and debris
• Construction materials
• Landscaping materials
• Property cleanup loads

CARGO CONTROL

The DCB10K includes multiple tie-down and cargo-control points.

Standard Cargo Features

• (4) 1/2” D-rings inside the dump bed
• Three stake pockets along both sides
• J-hooks along the sides and rear
• Heavy-duty safety chains
• Side-mounted spare tire mount

The interior D-rings make it easier to safely secure equipment when using the trailer as an equipment hauler.

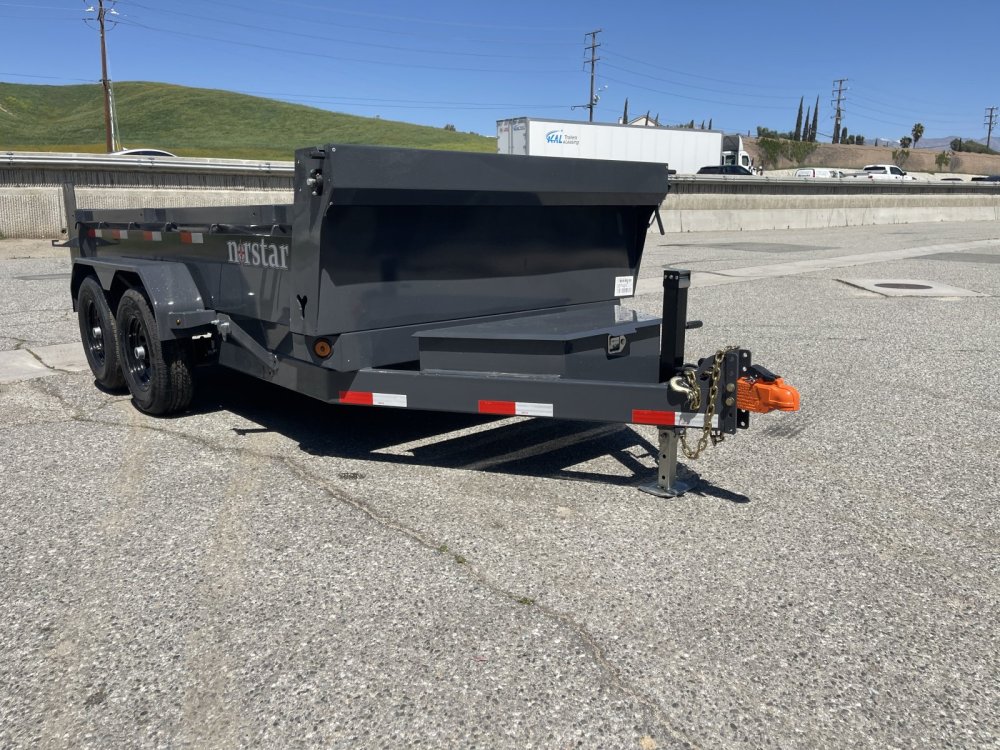

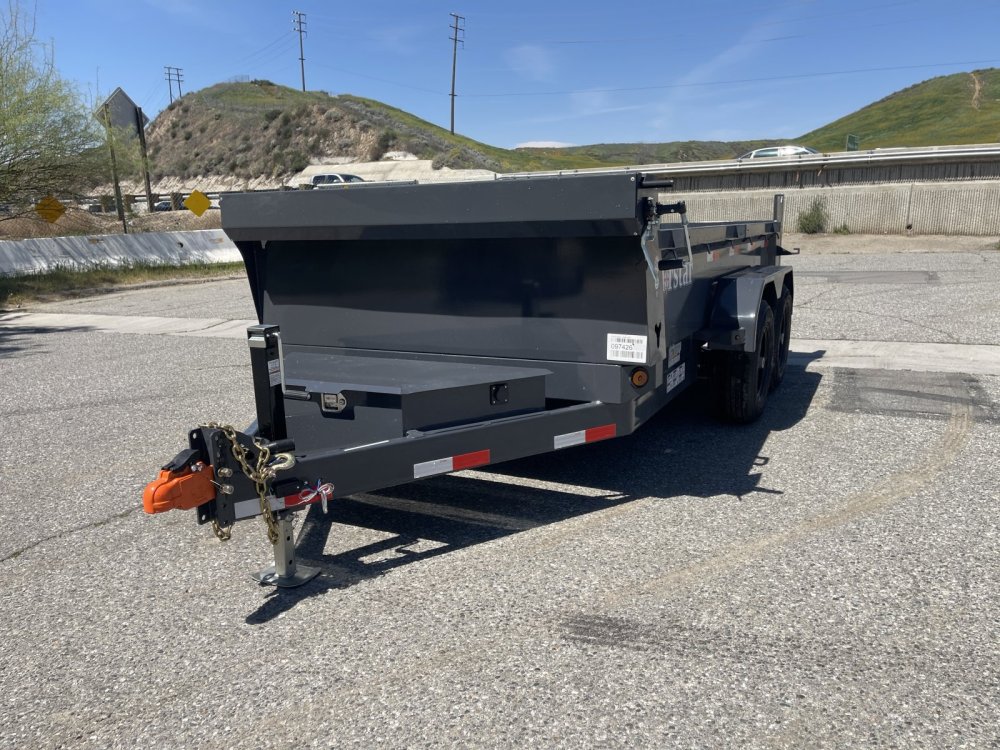

COUPLER & JACK

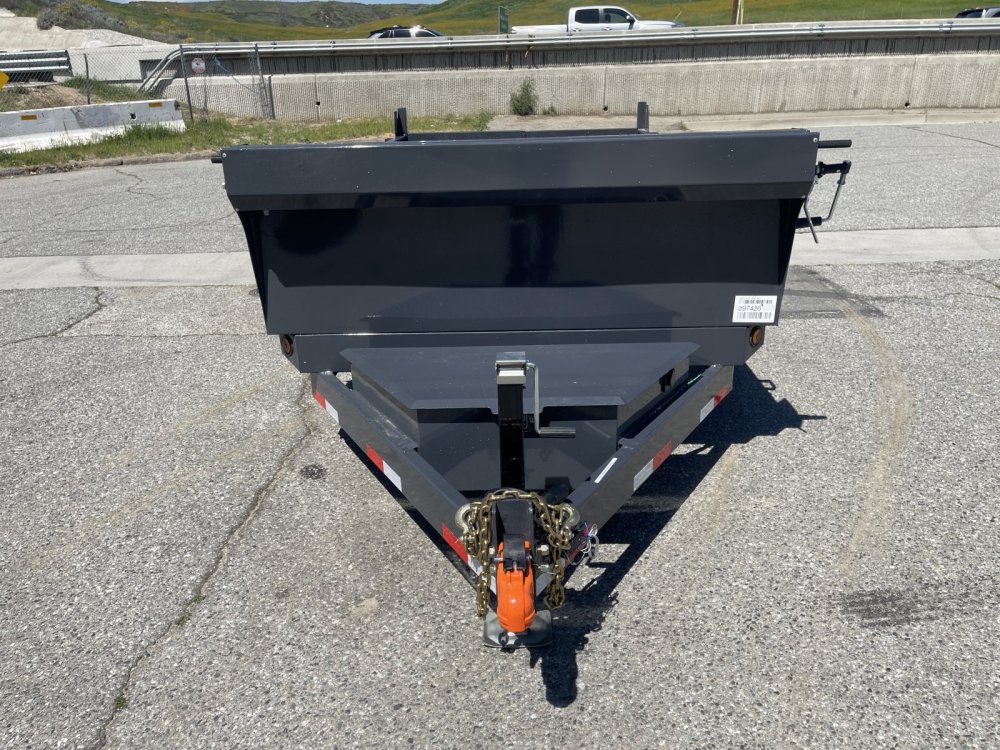

• 2” Apex auto-latch coupler
• 7,000 lb side-wind drop-leg jack
• 5/16” Grade 70 safety chains
• Safety-latch hooks

The auto-latching coupler helps make trailer hookup quick and straightforward.

ELECTRICAL & LIGHTING

The DCB10K uses a recessed lighting system designed to protect the lights during normal trailer use.

Electrical Features

• Recessed LED lighting
• Grommet-mounted lights
• Standard sealed wiring harness
• 7-way RV trailer connection
• Complete electric breakaway system
• 12V deep-cycle hydraulic battery
• 5A onboard battery charger

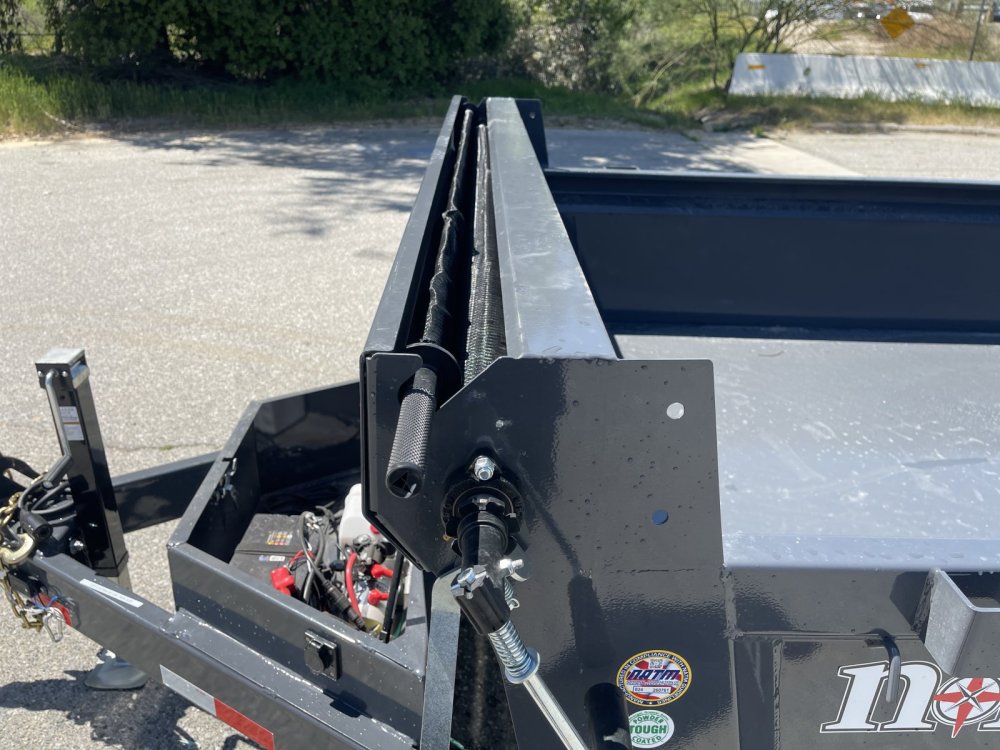

TARP-READY DESIGN

The front of the dump body includes:

• Tarp mounting brackets
• Front tarp shield

This allows the trailer to be easily equipped with a tarp system for hauling dirt, mulch, debris, and other loose materials.

PERFECT FOR

The Norstar DCB10K 72x12 is a great choice for:

• Landscaping
• Property maintenance
• Construction work
• Home and property cleanups
• Dirt and gravel
• Mulch and soil
• Brush and debris
• Roofing debris
• Small equipment hauling
• Lawn and garden equipment
• Compact tractors
• Farm and ranch work

COMPACT SIZE. SERIOUS CAPABILITY.

The Norstar DCB10K 72x12 offers an excellent balance between size, capacity, and maneuverability.

Its tandem 5,200 lb axles, 10-gauge floor, scissor hoist, equipment ramps, barn-door gate, and power up / power down hydraulic system make it much more versatile than a basic dump trailer.

If you want a dump trailer that is easy to maneuver but still built to handle serious everyday work, the DCB10K is a strong choice.

AVAILABLE AT YUCAIPA TRAILERS

Yucaipa Trailers
31107 Outer Hwy 10
Redlands, CA 92373

Call or Text: 909-794-6971
Website: www.yucaipatrailers.com

Financing options available OAC.
Lease-to-own programs may also be available.

Subject to prior sale. Trailer specifications, installed equipment, and options may vary by individual unit. Please verify all specifications and equipment before purchase.
