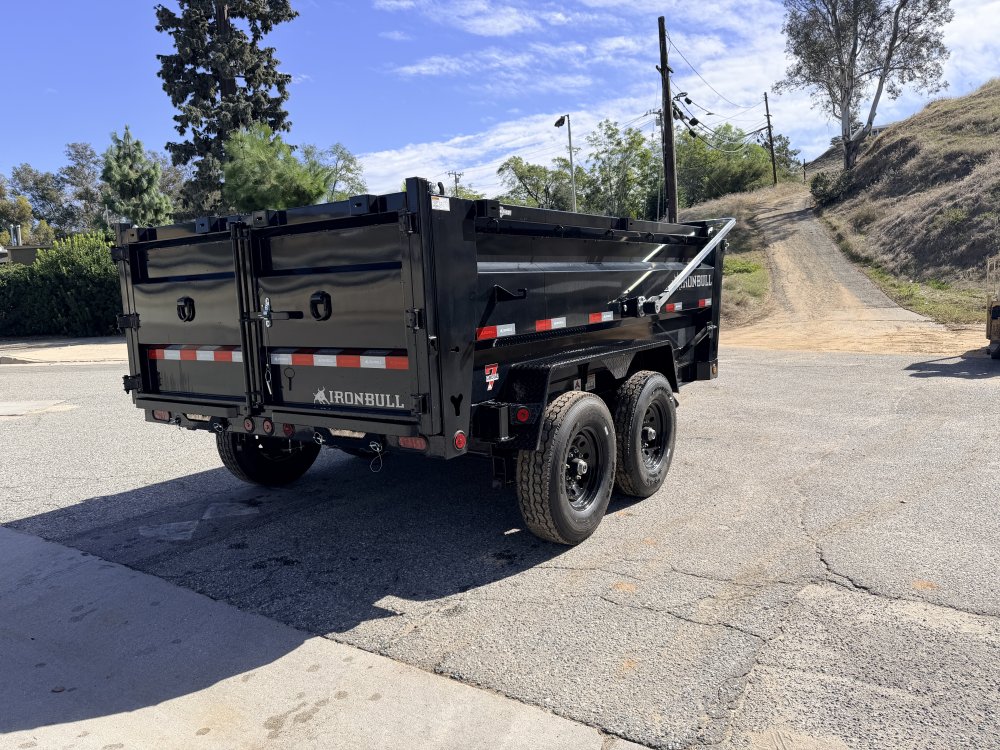

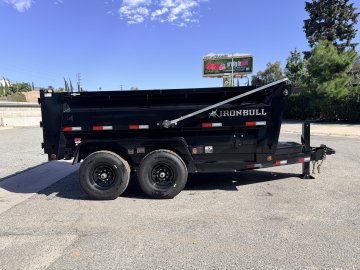

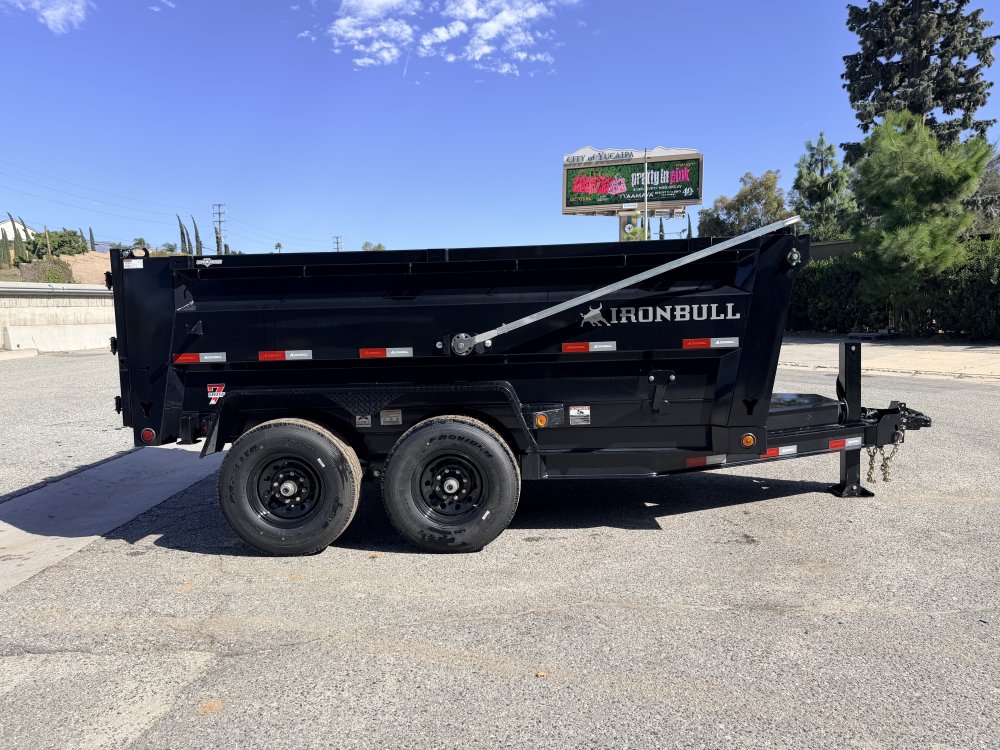

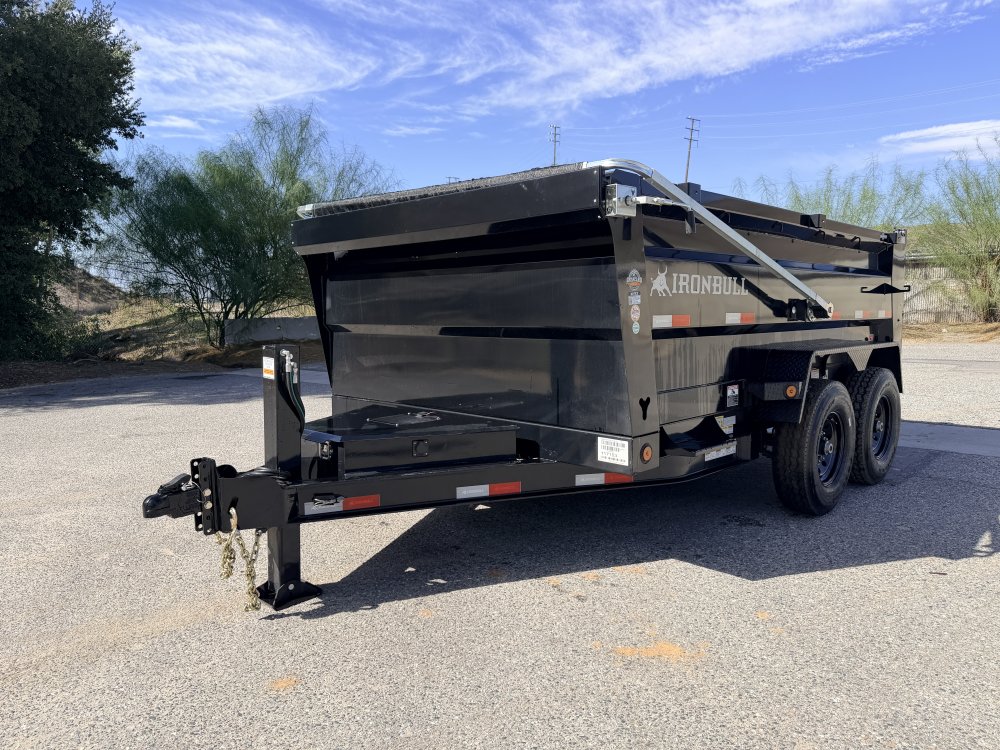

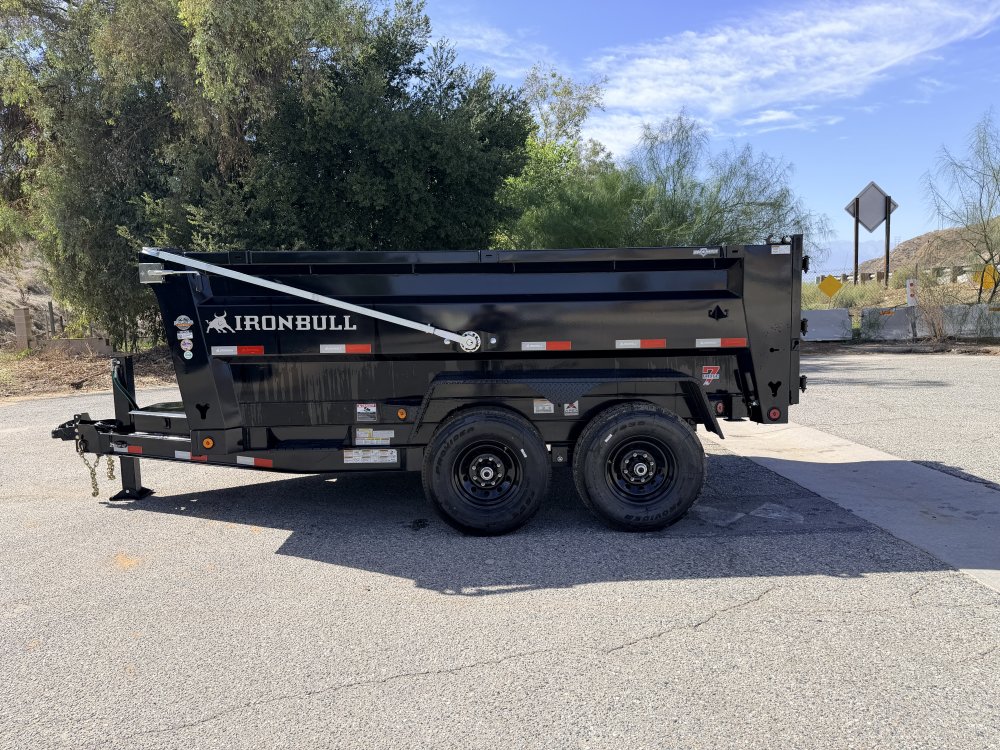

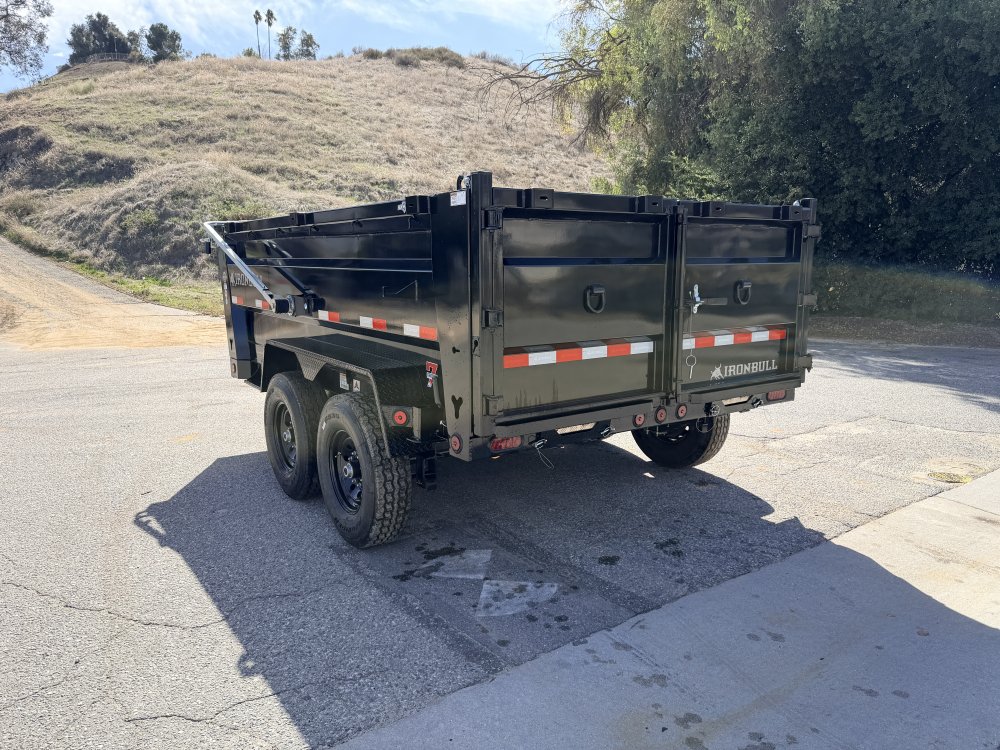

Iron Bull DTB83x12 Heavy-Duty Dump Trailer

The Iron Bull DTB83x12 is a heavy-duty bumper-pull dump trailer built for contractors, landscapers, property owners, equipment operators, and anyone who needs a serious trailer for demanding work.

This unit is equipped with dual 7,000 lb axles, a rugged 6” I-beam frame and tongue, 36” tall 10-gauge dump sides, Iron Bull’s TH-516 scissor hoist, and a premium 12,000 lb Atlas hydraulic jack for easier hookup and leveling.

It is also loaded with upgrades including 14-ply radial tires, matching 14-ply spare tire, aluminum slide-in ramps, front-mounted Pro Tarp Kit, solar charger, full-size front toolbox, and welded D-rings.

KEY FEATURES

• 83” x 12’ dump trailer
• (2) 7,000 lb straight axles
• Electric brakes on both axles
• Forward self-adjusting brakes
• Heavy-duty 6” I-beam frame
• 6” I-beam tongue
• 36” tall 10-gauge dump sides
• Iron Bull TH-516 scissor hoist
• 12,000 lb Atlas hydraulic jack assembly
• Full-size front toolbox with hydraulic pump
• 14” x 80” aluminum slide-in ramps
• Front-mounted Pro Tarp Kit
• Solar panel charger
• 14-ply radial tires
• Matching 14-ply spare tire included
• Weld-on diamond plate fenders
• Four heavy-duty welded D-rings
• Side step plate
• LED lighting
• Black finish

HEAVY-DUTY FRAME & CONSTRUCTION

The DTB83x12 is built around a rugged 6” I-beam frame and 6” I-beam tongue, providing the structural strength needed for demanding dump and equipment-hauling applications.

The dump body features 36” tall 10-gauge steel sides, giving you increased material capacity while maintaining the durability needed for dirt, gravel, demolition debris, landscaping materials, and other heavy loads.

Construction Features

• 6” I-beam main frame
• 6” I-beam tongue
• 36” 10-gauge dump sides
• Weld-on diamond plate fenders

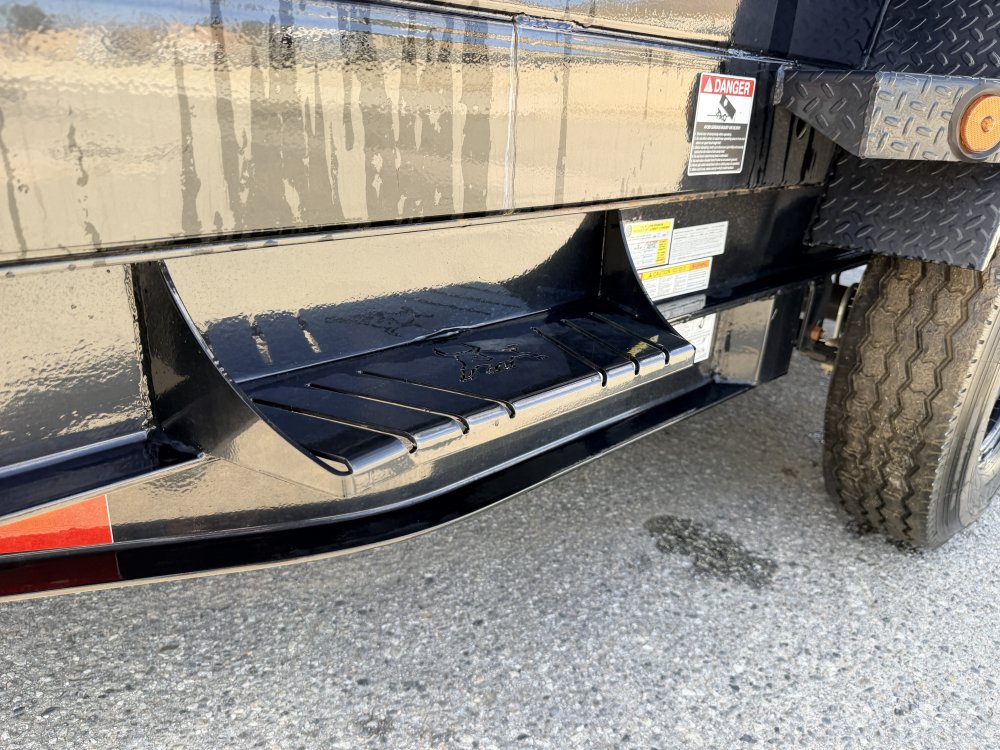

• Side step plate
• Black finish

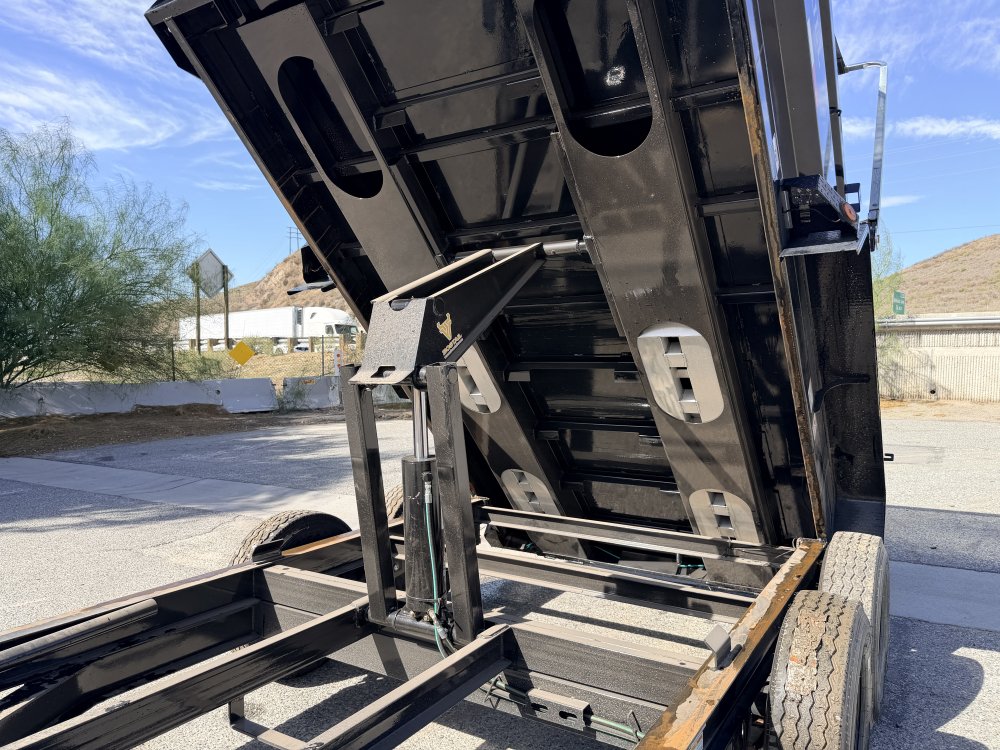

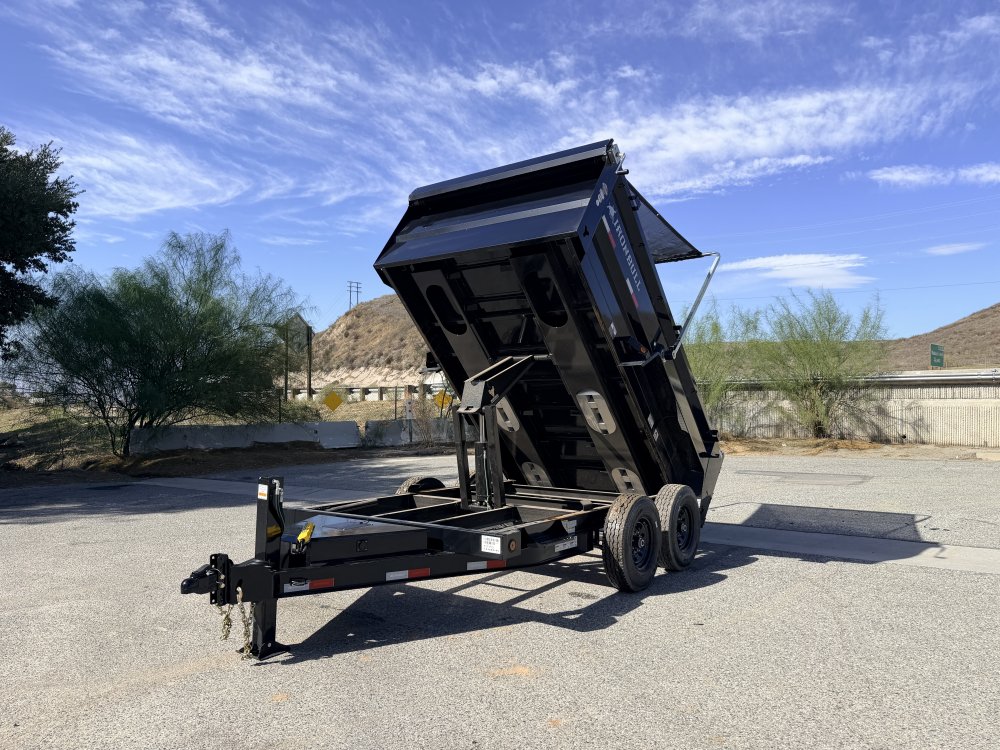

TH-516 SCISSOR HOIST

The DTB83x12 uses Iron Bull’s TH-516 scissor hoist, providing a strong and stable lifting system for the dump body.

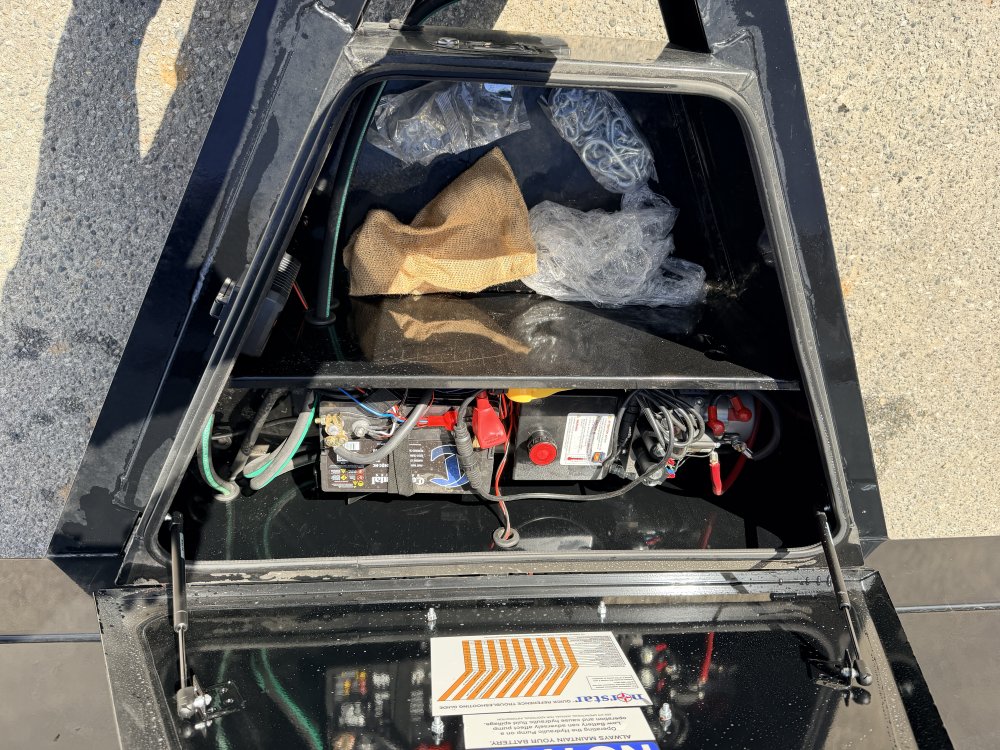

A full-size front toolbox houses the hydraulic components while helping protect the pump and related equipment from the elements and job-site conditions.

12K HYDRAULIC JACK

This trailer is upgraded with an Atlas 12,000 lb hydraulic jack assembly, eliminating much of the manual effort normally required to raise and lower a heavy trailer tongue.

This is especially useful when the trailer is being hooked up frequently or used in commercial applications where convenience and efficiency matter.

DUAL 7K AXLES

The trailer rides on two 7,000 lb straight axles with electric brakes on both axles.

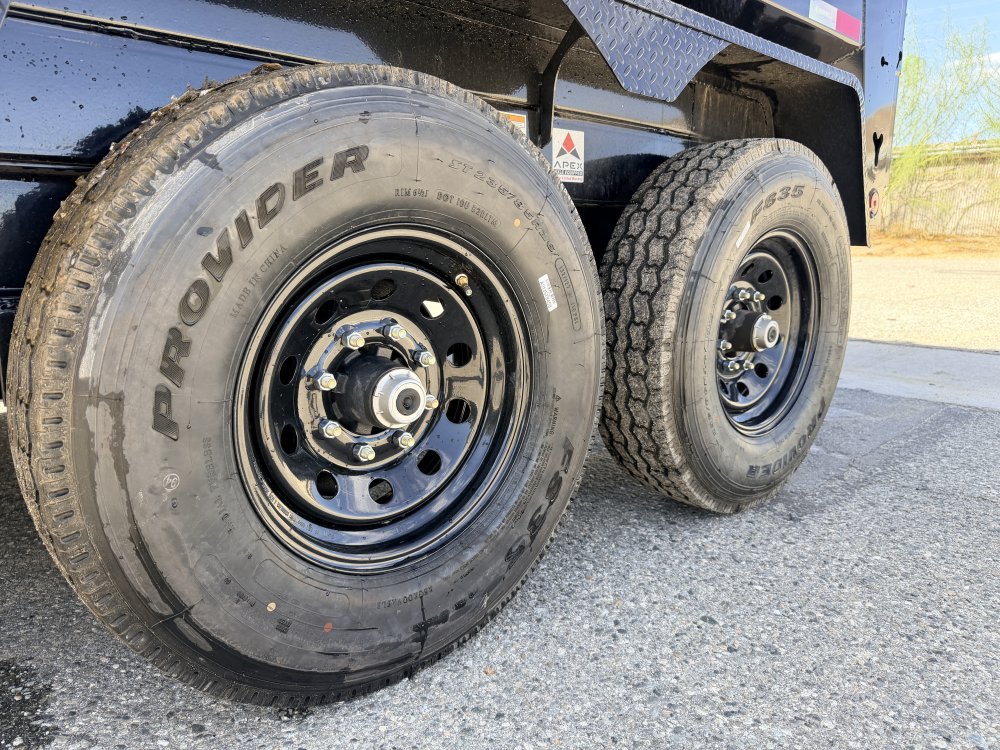

Running Gear

• (2) 7,000 lb straight axles
• Electric brakes on both axles
• Forward self-adjusting brakes
• ST235/85R16 Load Range G radial tires
• 14-ply rated tires
• Matching ST235/85R16 Load Range G 14-ply spare tire included
• Spare tire mount

The heavier-duty 14-ply tire package provides increased durability for demanding towing and commercial use.

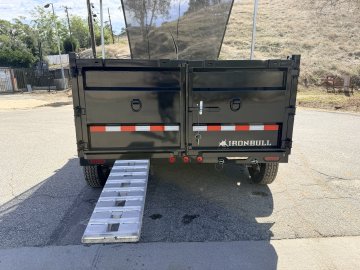

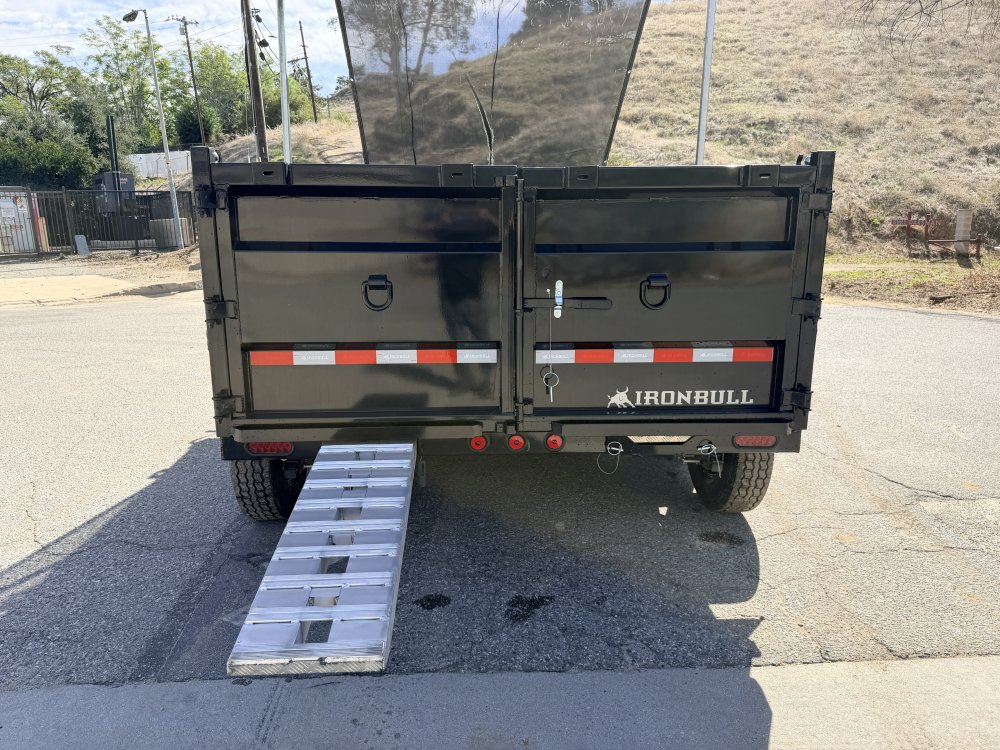

ALUMINUM SLIDE-IN RAMPS

This DTB comes equipped with 14” x 80” aluminum slide-in ramps, allowing the dump trailer to double as an equipment hauler.

The aluminum construction provides the strength needed for loading equipment while being lighter and easier to handle than comparable steel ramps.

Ideal for loading:

• Compact tractors
• Mowers
• Landscaping equipment
• Small construction equipment
• UTVs and other machinery

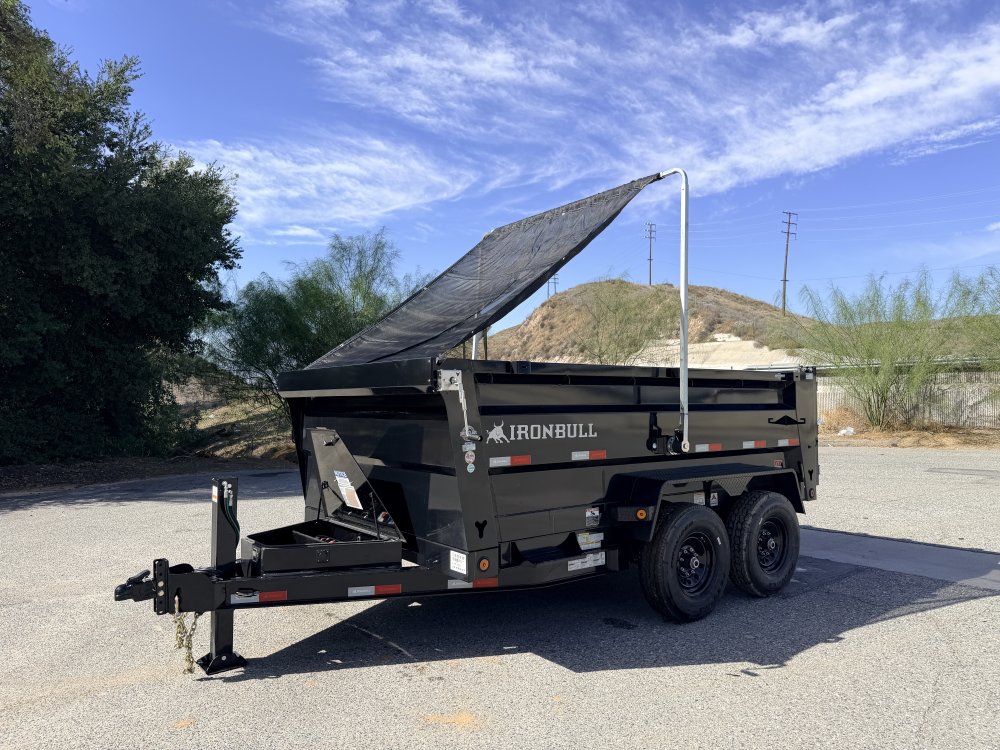

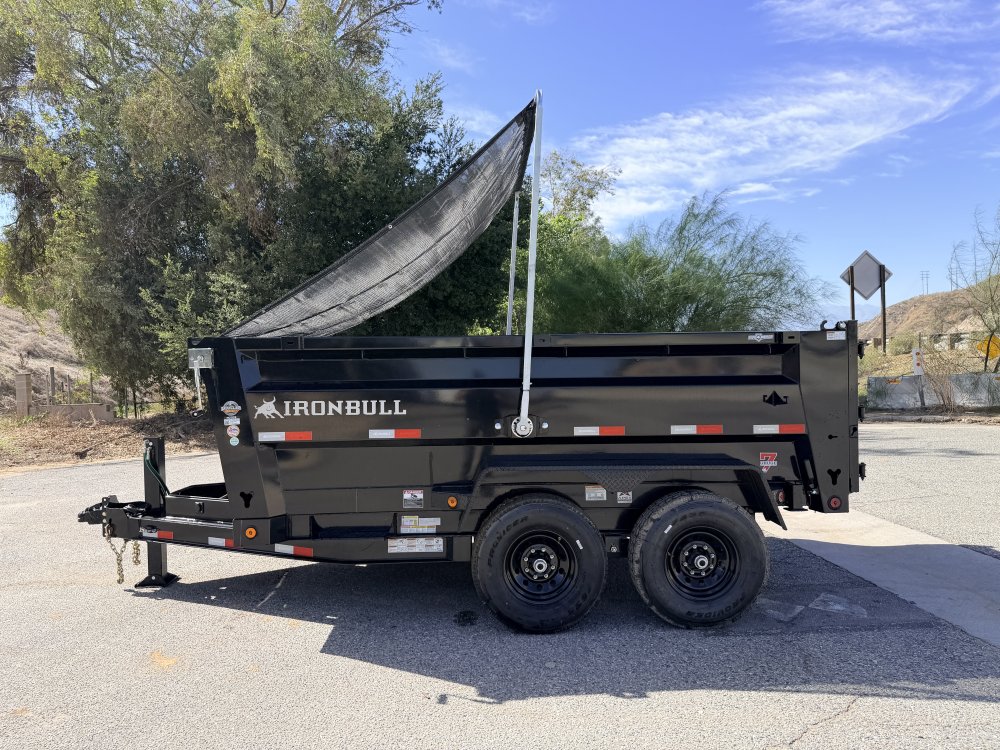

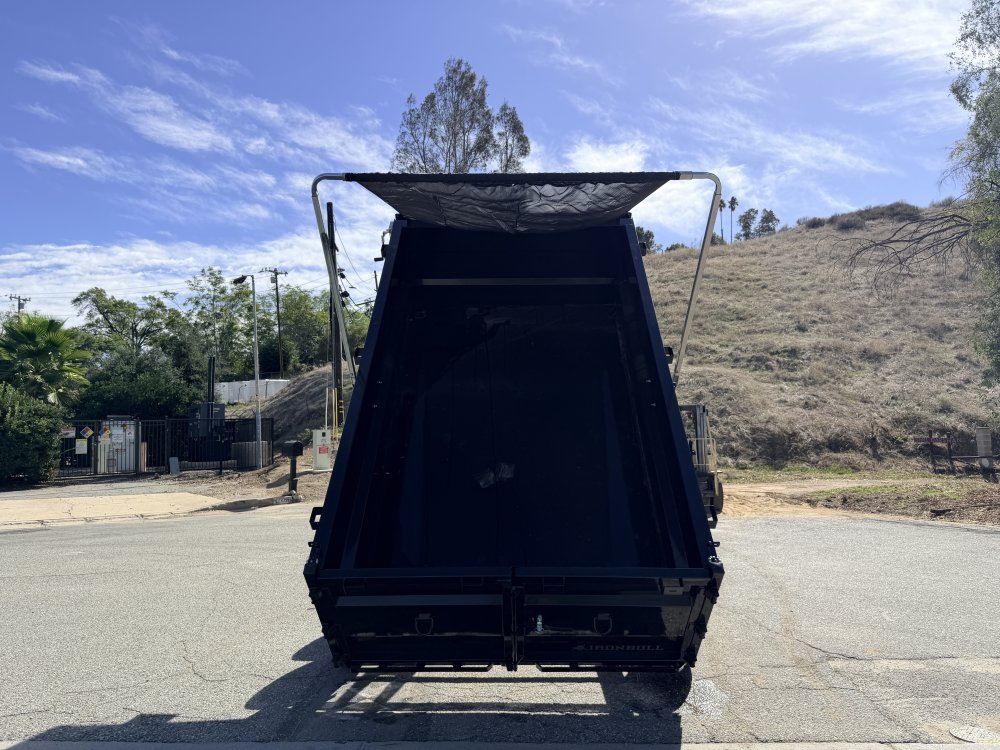

PRO TARP KIT

A front-mounted Pro Tarp Kit is included, making it easier to secure loose material during transport.

This is especially useful when hauling:

• Dirt
• Gravel
• Mulch
• Landscaping material
• Brush
• Construction debris
• Demolition material

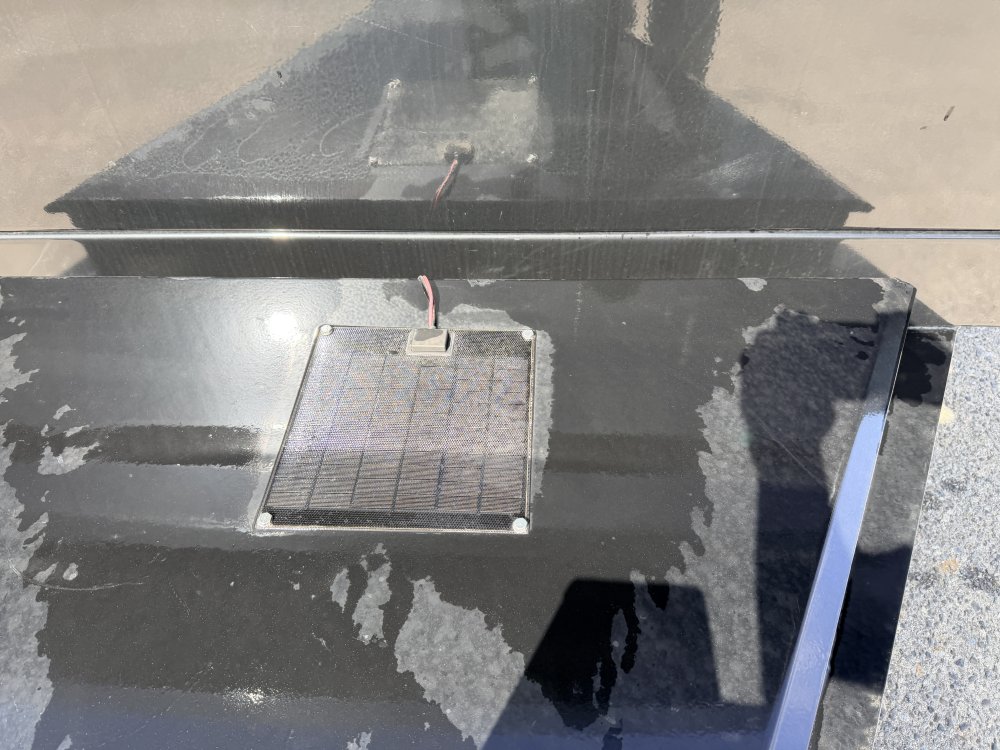

SOLAR CHARGER

The included solar panel charger helps maintain the hydraulic system battery while the trailer is parked or working in the field.

This is a valuable upgrade for trailers that see frequent hydraulic use and may spend extended periods away from shore power.

CARGO CONTROL

The DTB83x12 includes four heavy-duty 3” x 5/8” welded D-rings, giving you secure tie-down points when hauling equipment or machinery.

Cargo Features

• (4) 3” x 5/8” welded D-rings
• Aluminum equipment ramps
• Spare tire mount
• Side step plate
• Front toolbox

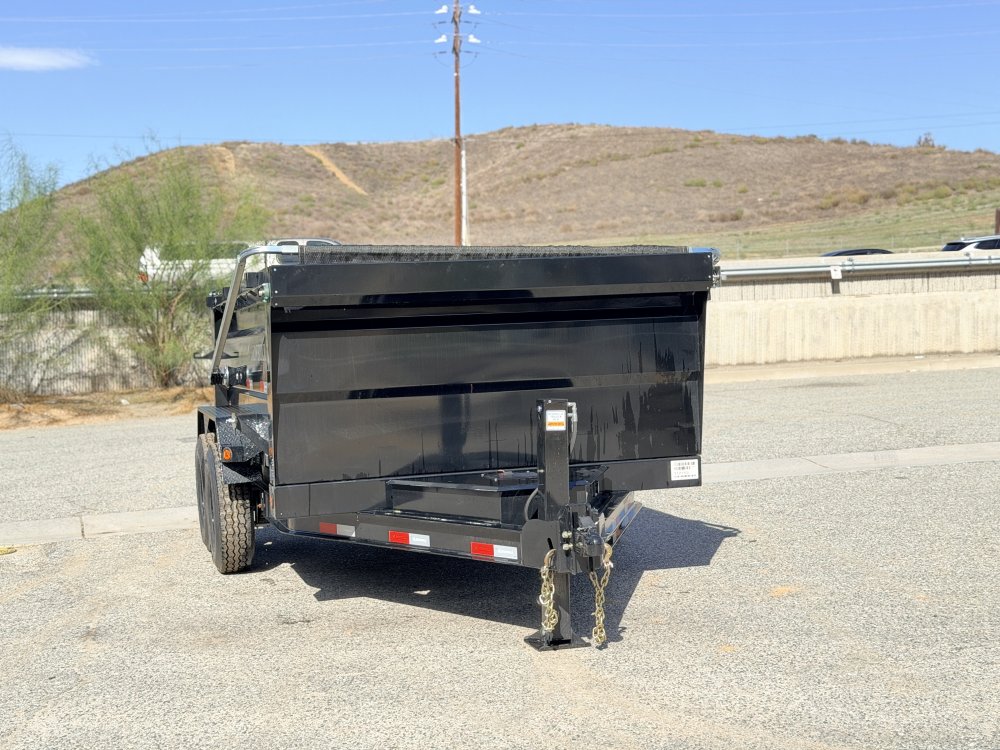

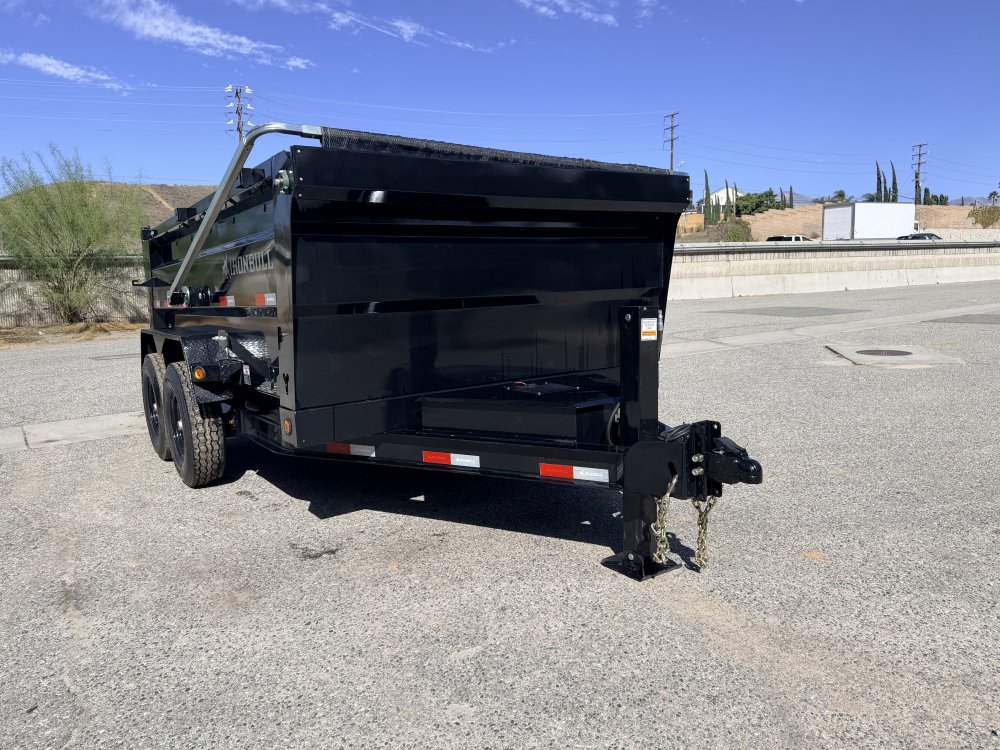

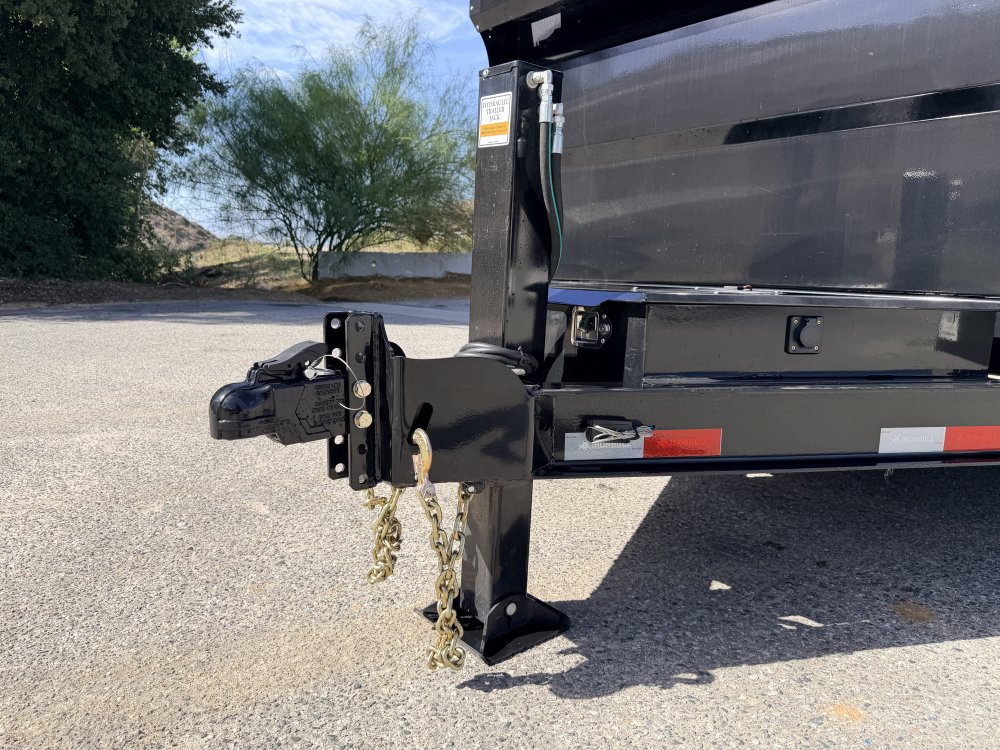

COUPLER

The trailer is equipped with a heavy-duty adjustable 2-5/16” bumper-pull coupler rated for 14,000 lbs.

The adjustable design allows the coupler height to be matched more closely to different tow vehicles for a more level towing setup.

LIGHTING & ELECTRICAL

• Standard sealed wiring harness
• LED lighting
• 6” oval LED lights
• Solar battery charger

PERFECT FOR

The Iron Bull DTB83x12 is well suited for:

• Construction
• Landscaping
• Demolition
• Property cleanups
• Dirt and gravel
• Mulch and soil
• Roofing debris
• Farm and ranch work
• Equipment hauling
• Compact tractors
• Commercial maintenance
• General contractor use

LOADED WITH THE UPGRADES THAT MATTER

This is not a stripped-down dump trailer. With its dual 7K axles, 36” 10-gauge sides, TH-516 scissor hoist, 12K hydraulic jack, aluminum ramps, 14-ply tire package with spare, Pro Tarp Kit, solar charger, and full-size toolbox, the DTB83x12 is equipped for serious everyday use.

If you need a compact heavy-duty dump trailer that can haul materials one day and equipment the next, the Iron Bull DTB83x12 is built to get the job done.
